MS3128K
Shell size |
L max over-all length |
x dia min |
y dia max |
PP min |
10 |
1.750 |
.434 |
.734 |
.250 |
12 |
.548 |
.858 |
||
14 |
.673 |
.984 |
||
16 |
.798 |
1.110 |
||
18 |
.899 |
1.234 |
||
20 |
1.892 |
1.024 |
1.360 |
|
22 |
1.149 |
1.484 |
||
24 |
1.953 |
1.274 |
1.610 |

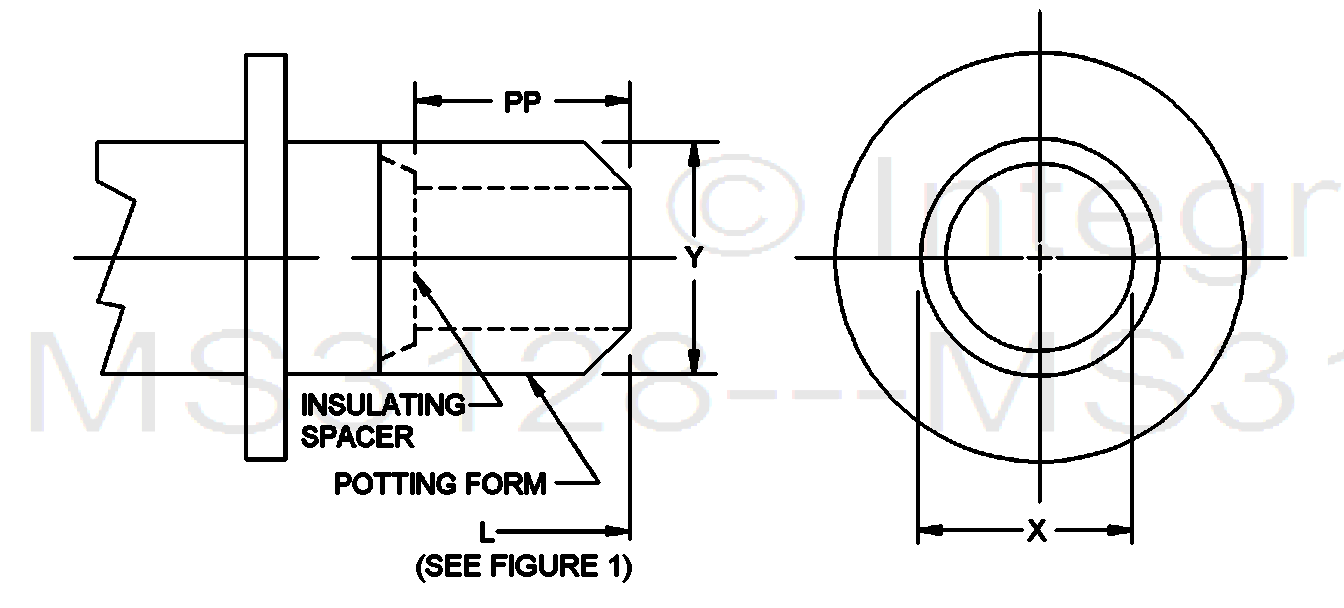

CLASS P
NOTES:
1. Dimensions are in inches.
2. Angle tolerance is +/- 1/2°.
3. Metric equivalents are given for general information only.
4. Distance between end of shell and the point at which a gage pin having the same basic diameter as the mating contact and a square face first engages socket contact spring.
5. True position (TP) tolerances specified are in accordance with ASME y14.5M.
6. For class F: Use MS3420 bushing if reduced opening is required.
7. For class F: Lockwashers may be captivated.
FIGURE 1. Receptacle, dimensions, classes E, F and P - Continued.
8
