INCH-POUND
MS3185B
12 September 2013
SUPERSEDING MS3185A
15 February 1967
DETAIL SPECIFICATION SHEET
MOLD, POTTING, AND ADAPTER, ELECTRICAL CONNECTOR (FOR MIL-DTL-26482, SERIES 1, CLASS P)
Inactive for new design after 12 September 2013.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only.
2. Thread relief must be larger than one full thread to allow potting compound to fill thread relief when boot is bottomed on mating connector accessory thread.
3. When a separate metal threaded ring is provided, ring shall be .125 minimum thickness having an interference fit with the boot. The separate metal ring shall be mandatory on the 75-90 degree elbow.

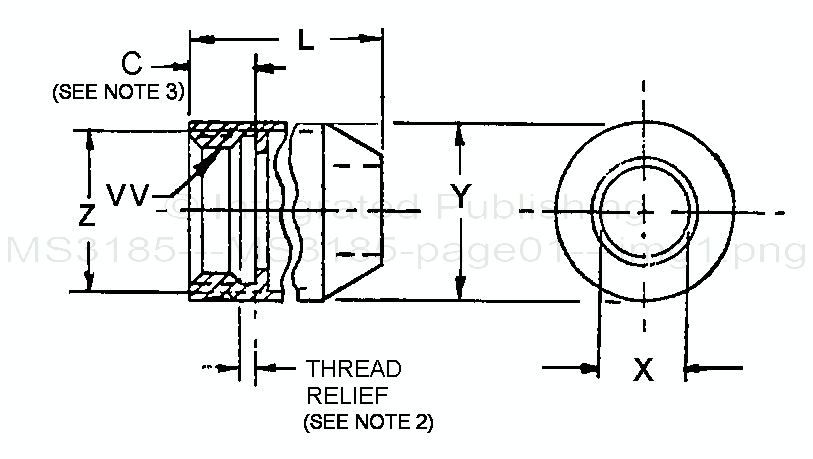

FIGURE 1. Mold, potting, straight boot.
AMSC N/A FSC 5935
