INCH-POUND
MS3443C
14 January 2011
SUPERSEDING MS3443B
1 March 2007
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, SOLDER OR WELDED FLANGE MOUNT, BAYONET COUPLING, SOLDER PIN CONTACT, CLASS H, SERIES 2
Inactive for new design after 15 December 1998.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTE: For "XX", see note 4 and table I for contact cavities requiring reduced dimensions.

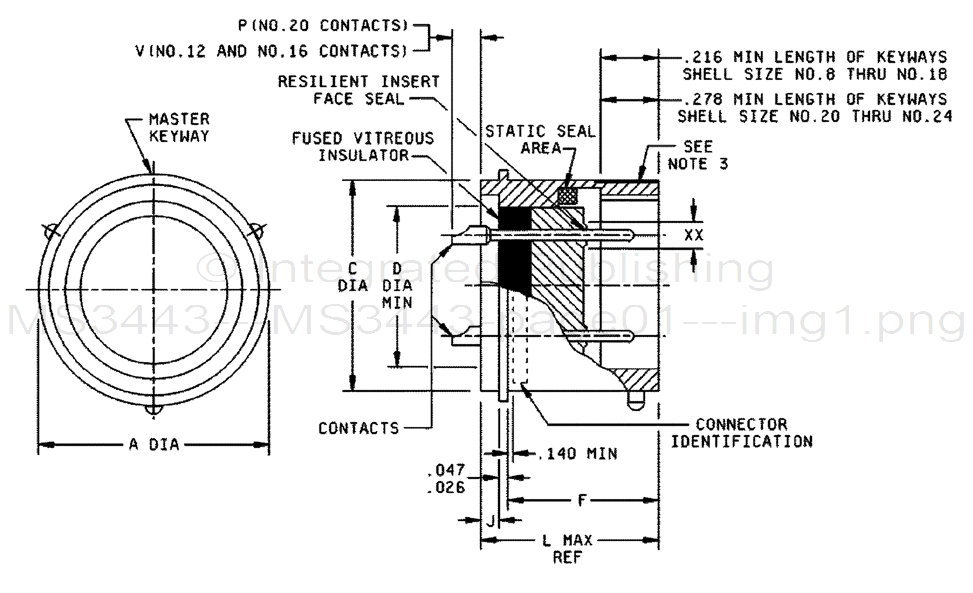

FIGURE 1. Receptacle, class H, dimensions and configurations.
AMSC N/A FSC 5935
