MS3443C
Contact size |
BB |
CC |
DD |
HH |
KK |
20 |
.041 (1.04) .039 (0.99) |
.088 (2.24) .061 (1.55) |
.048 (1.22) .042 (1.07) |
.188 (4.78) .109 (2.77) |
.110 (2.79) .068 (1.73) |
16 |
.0635 (1.61) .0615 (1.56) |
.116 (2.95) .096 (2.44) |
.075 (1.91) .069 (1.75) |
.251 (6.38) .172 (4.37) |
.141 (3.58) .109 (2.77) |
12 |
.095 (2.41) .093 (2.36) |
.150 (3.81) .130 (3.30) |
.122 (3.10) .112 (2.84) |
.251 (6.38) .172 (4.37) |
.141 (3.58) .109 (2.77) |

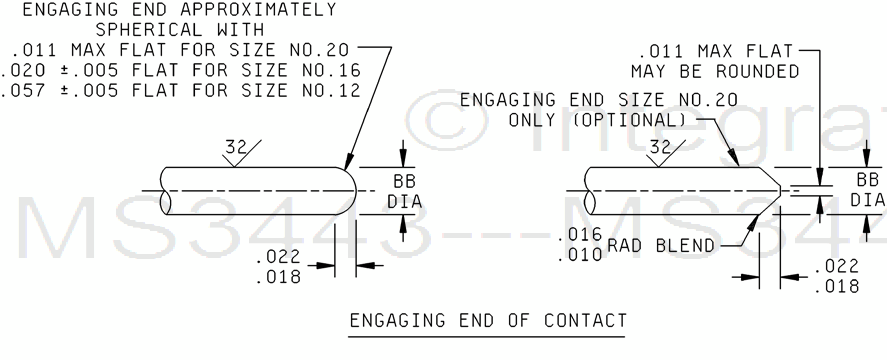

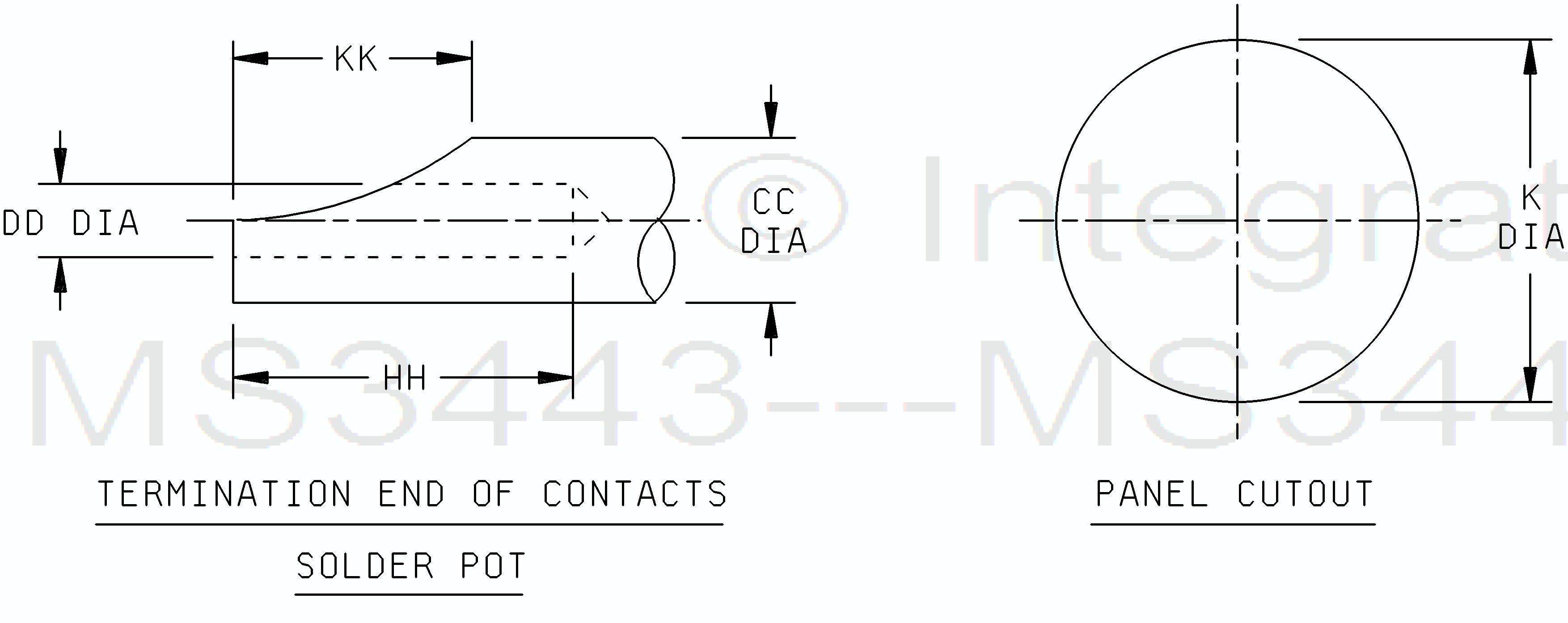

FIGURE 1. Receptacle, class H, dimensions and configurations - Continued.
3
