INCH-POUND
MS3473B
1 March 2007
SUPERSEDING MS3473A
05 September 1995
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, SERIES II, HERMETIC, SOLDERLESS, SOLDER MOUNTING, BAYONET COUPLING, CLASS N
Reactivated after 1 March 2007 and may be used for new and existing designs and acquisitions.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTE: For "XX", see note 4 and table I for contact cavities requiring reduced dimensions.

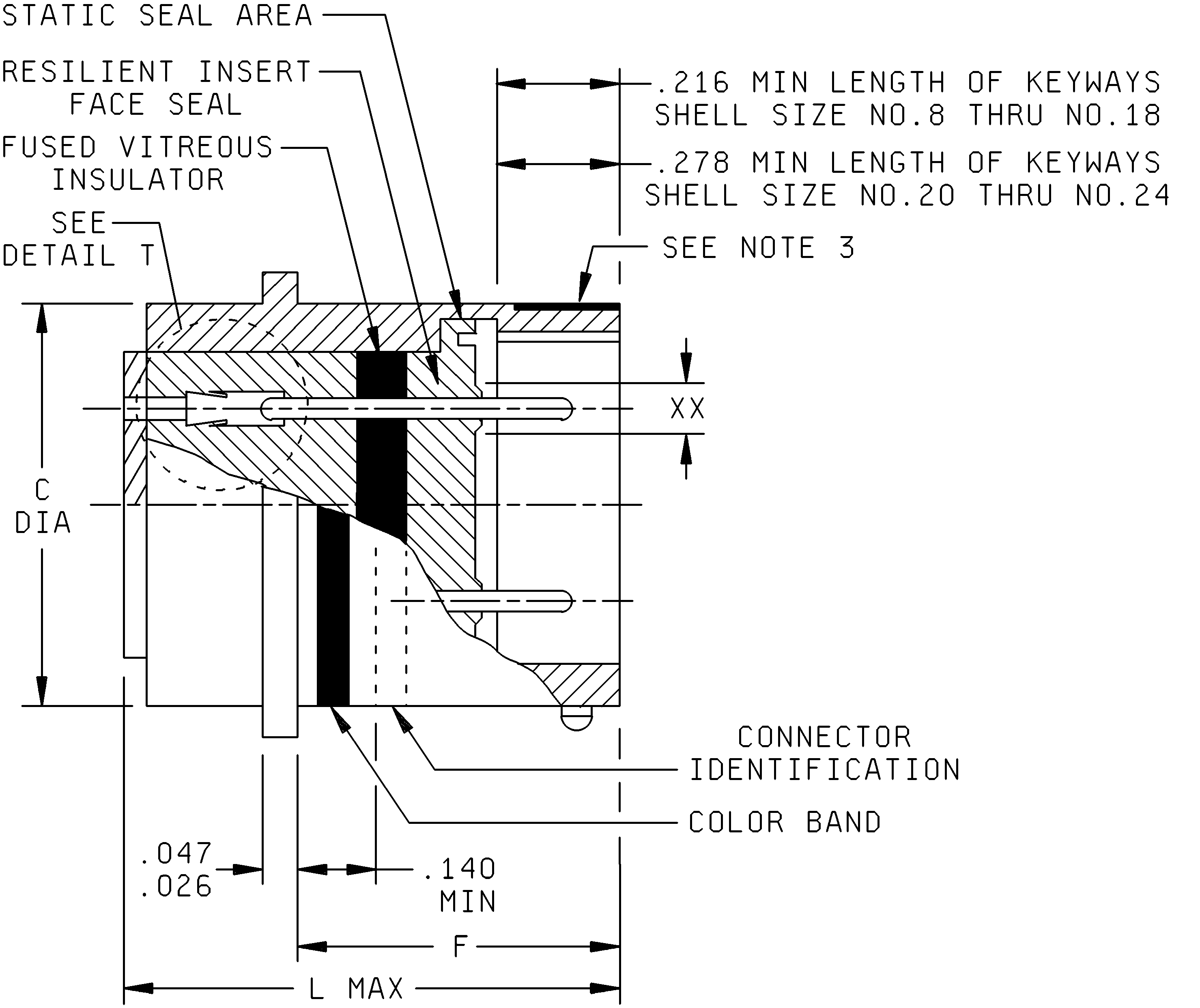

FIGURE 1. Receptacle, class N, dimensions and configurations.
AMSC N/A FSC 5935
