MS3473B
Inches (mm) Inches (mm) Inches (mm)
.005 (0.13)
.011 (0.28)
.039 (0.99)
.041 (1.04)
.0615 (1.56)
.0635 (1.61)
.018 (0.46) |
.042 (1.07) |
.072 |
(1.83) |
.020 (0.51) |
.047 (1.19) |
.140 |
(3.56) |
.022 (0.56) |
.052 (1.32) |
.216 |
(5.49) |
.026 (0.66) |
.06 (1.5) |
.278 |
(7.06) |

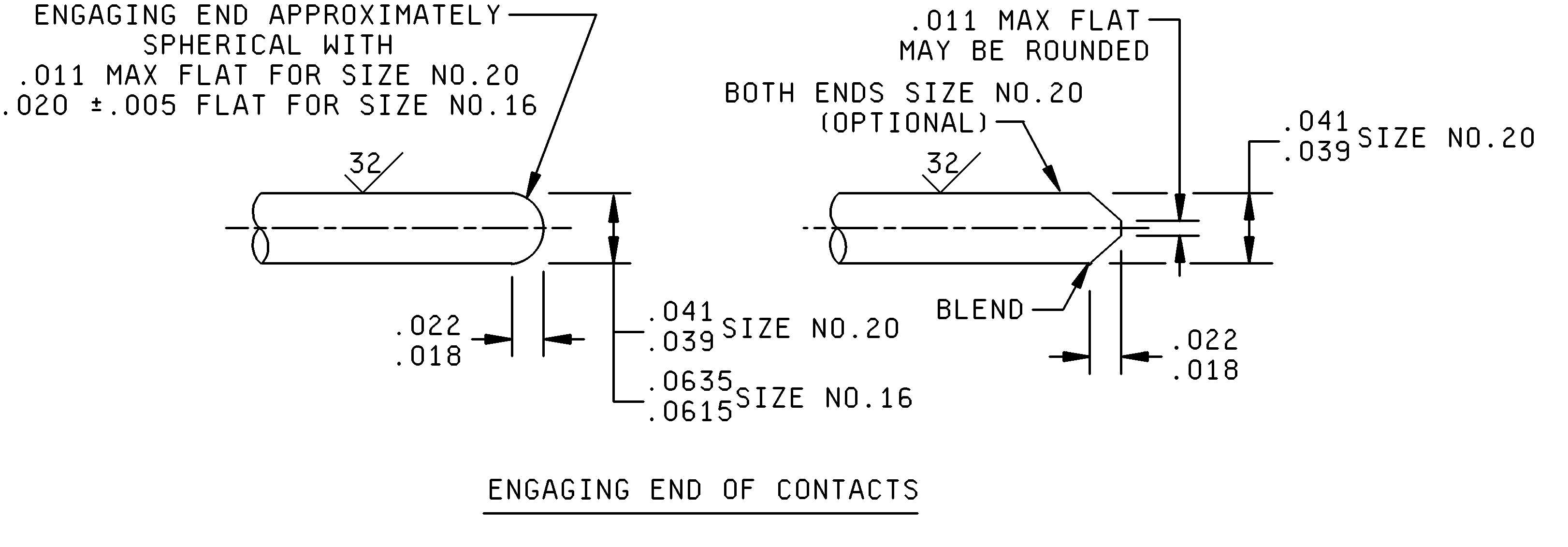

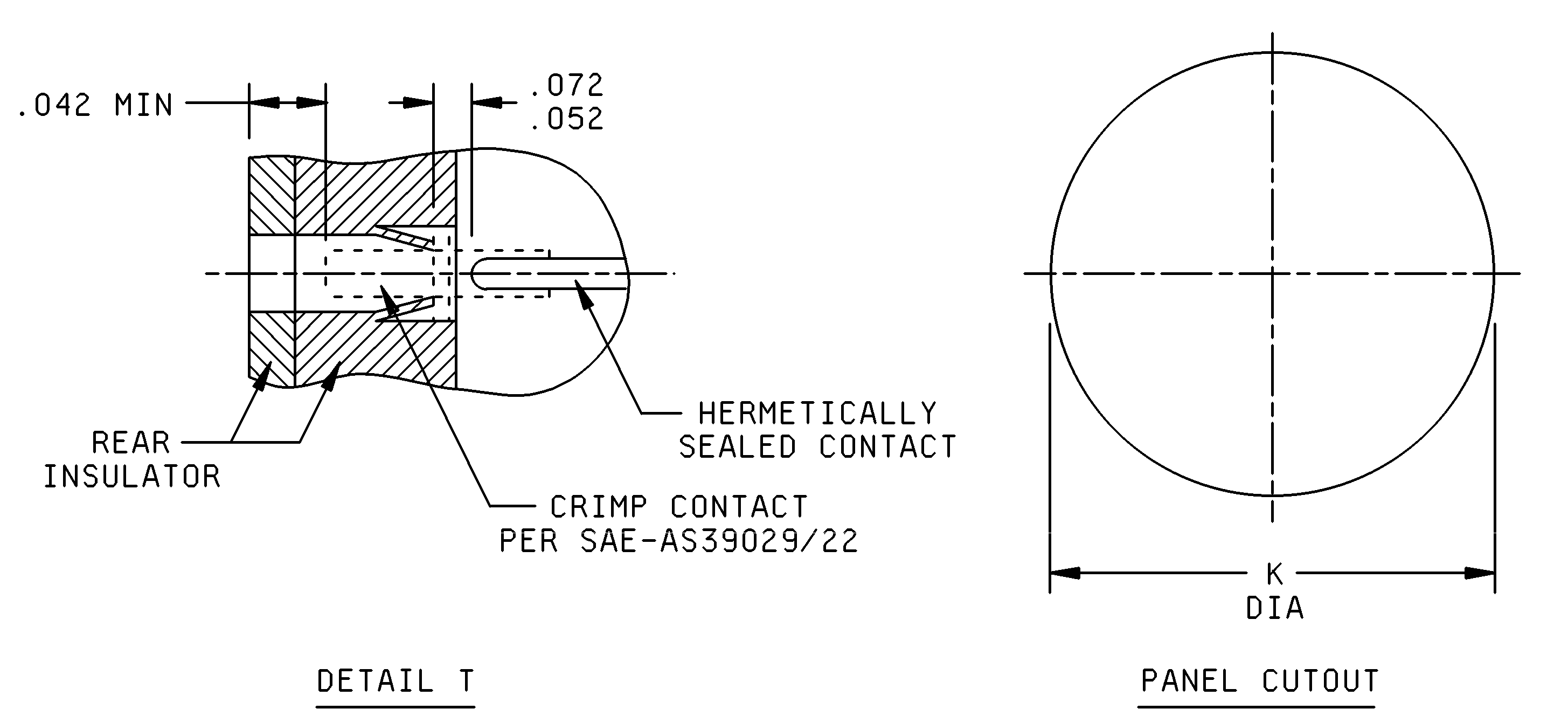

FIGURE 1. Receptacle, class N, dimensions and configurations - Continued.
3
