INCH-POUND
MS3475F
4 June 2009 SUPERSEDING MS3475E
1 March 2007
DETAIL SPECIFICATION SHEET
CONNECTORS, PLUG, ELECTRICAL, RFI SHIELDED, SERIES 2, CRIMP TYPE, BAYONET COUPLING, CLASSES D, L, T, W AND Z
Reactivated after 1 March 2007, and may be used for new and existing designs and acquisitions.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTE: For "XX", see note 5 and table I for contact cavities requiring reduced dimensions.

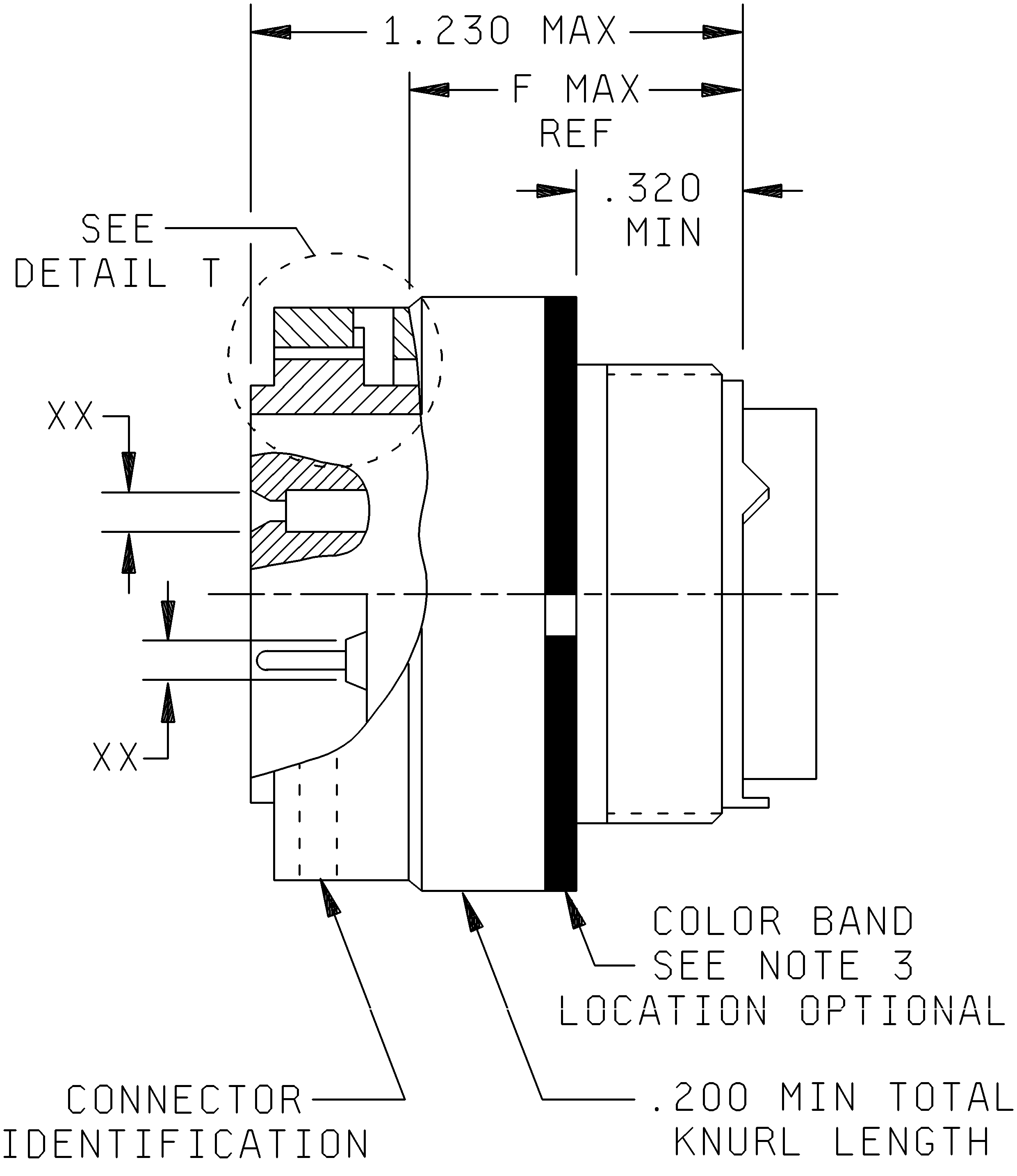

FIGURE 1. Plug, dimensions.
AMSC N/A FSC 5935
