INCH-POUND
MS3476F
4 June 2009 SUPERSEDING MS3476E
31 October 1988
DETAIL SPECIFICATION SHEET
CONNECTORS, PLUG, ELECTRICAL, SERIES 2,
CRIMP TYPE, BAYONET COUPLING, CLASSES A, D, L, T, W AND Z
Reactivated after 4 June 2009, and may be used for new or existing designs and acquisitions.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTE: For "XX", note 5 and table I for contact cavities requiring reduced dimensions.

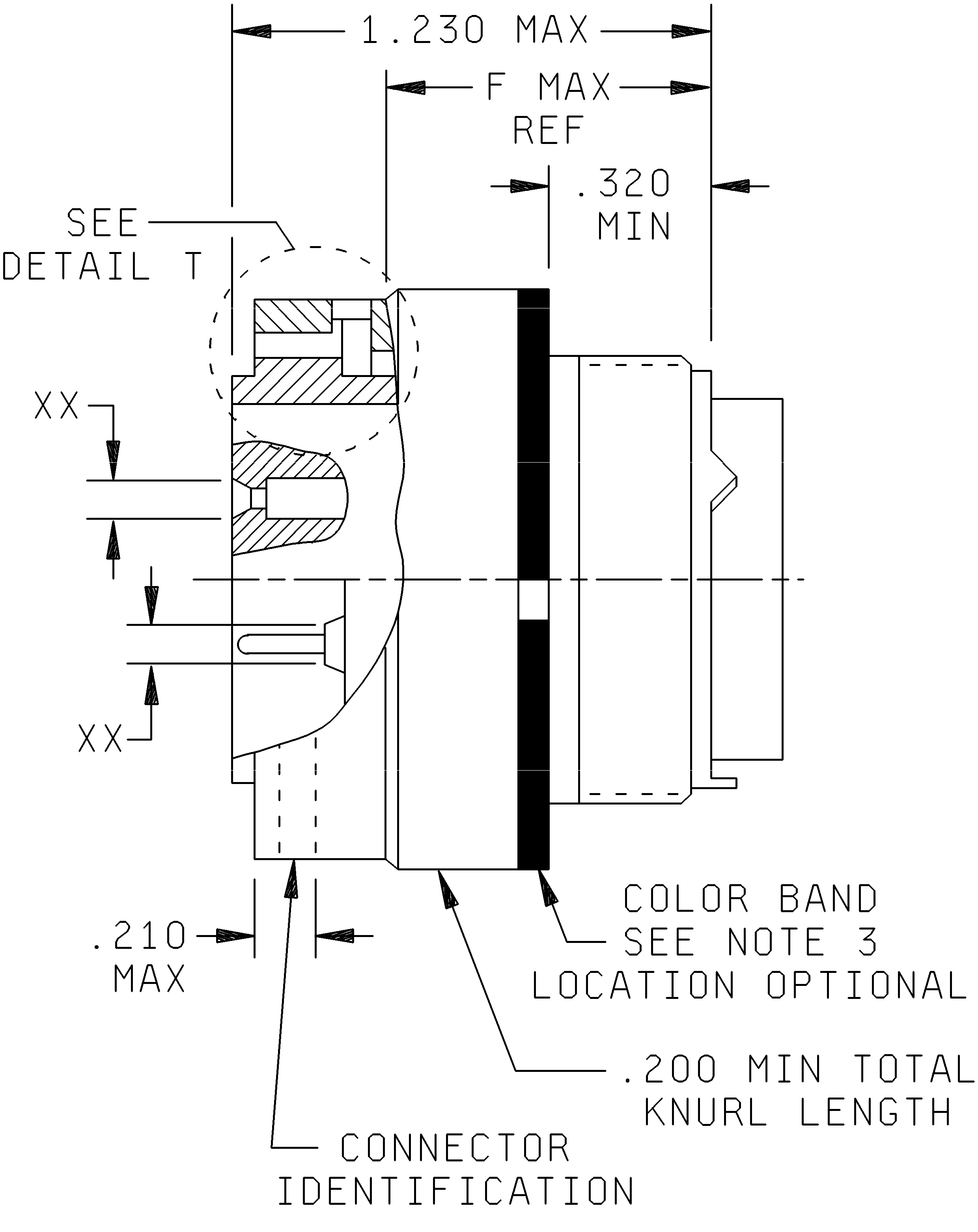

FIGURE 1. Plug, dimensions.
AMSC N/A FSC 5935
