INCH-POUND
DETAIL SPECIFICATION SHEET RECEPTACLE, CONNECTOR (TYPE SM) UG-700/U
MS35123C
7 November 2005
SUPERSEDING MS35123B
31 October 1956
Inactive for new design 15 June 1999
This specification is approved for use by all Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27434.
Inches |
mm |
Inches |
mm |
.001 |
.03 |
.175 |
4.44 |
.003 |
.08 |
.208 |
5.28 |
.038 |
.96 |
.266 |
6.76 |
.040 |
1.02 |
.363 |
9.14 |
.063 |
1.60 |
.375 |
9.52 |
.124 |
3.15 |
.406 |
10.31 |
.132 |
3.35 |
.414 |
10.51 |
.140 |
3.56 |
.7.19 |
18.26 |
.152 |
3.86 |

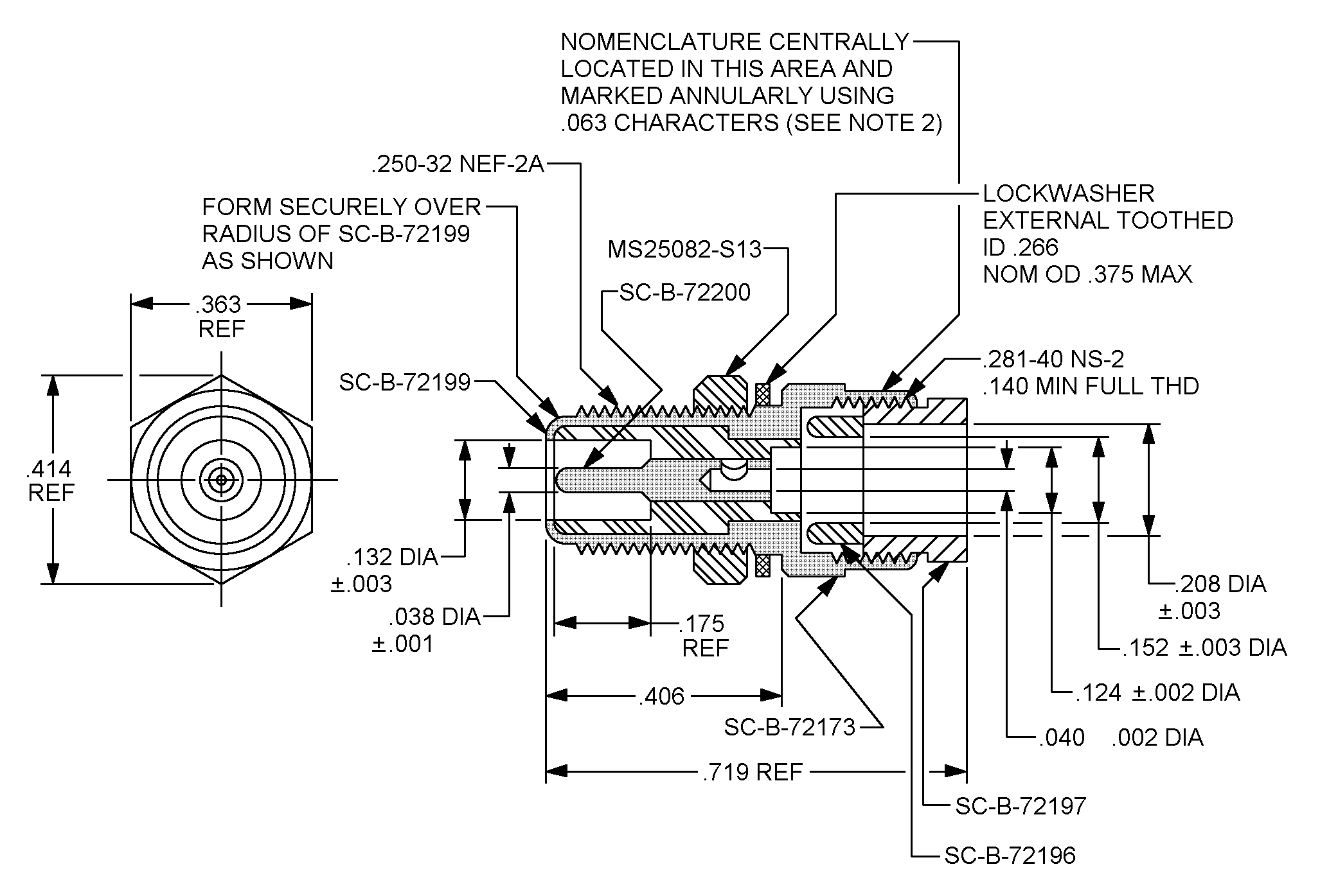

FIGURE 1. Type UG-700/U Connector.
AMSC N/A FSC 5935
