INCH-POUND
MS75021E
5 September 2013
SUPERSEDING MS75021D
23 December 1974
DETAIL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, ELECTRICAL, - 12 CONTACT, INTERVEHICULAR, 28 VOLT, WATERPROOF
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-38159.
Inches |
mm |
Inches |
mm |
.016 |
0.41 |
.269 |
6.83 |
.043 |
1.09 |
.667 |
16.94 |
.047 |
1.19 |
.743 |
18.87 |
.061 |
1.55 |
.804 |
20.42 |
.065 |
1.65 |
1.596 |
40.54 |
.125 |
3.18 |
2.183 |
55.45 |
.142 |
3.61 |
2.680 |
68.07 |

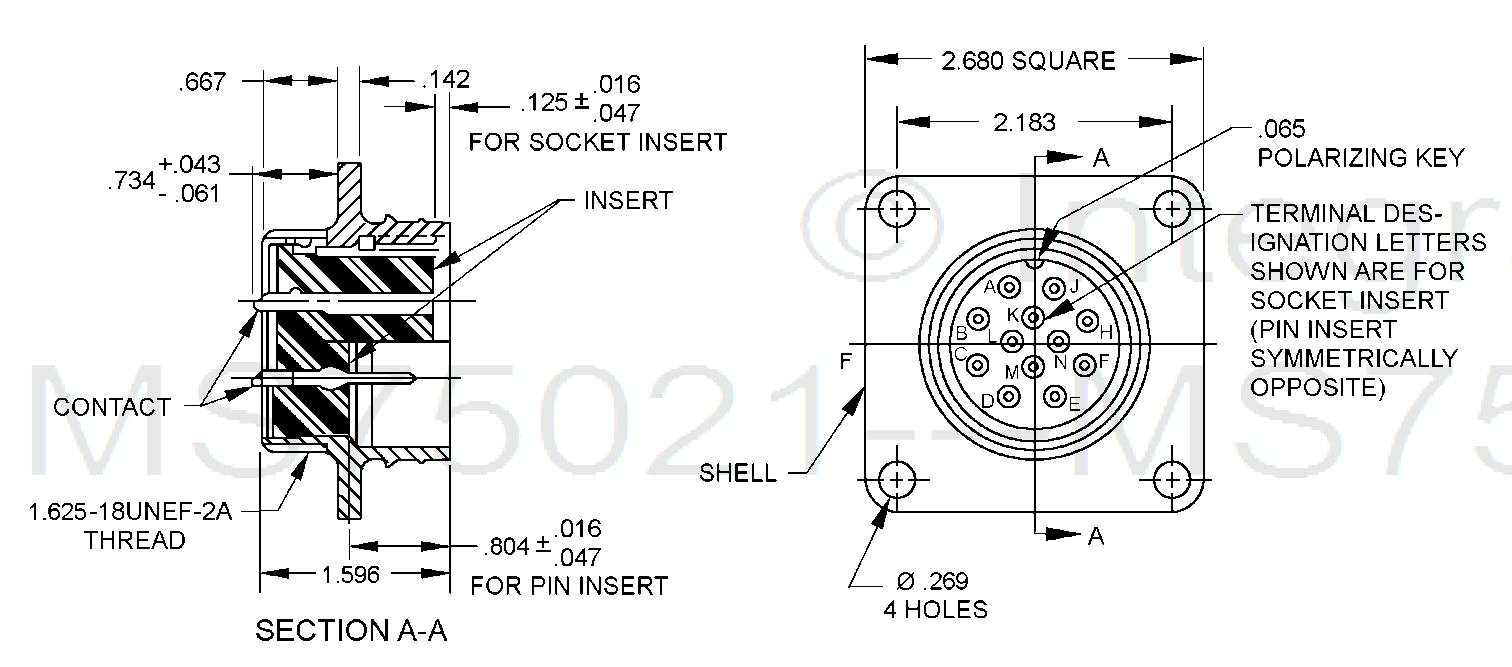

FIGURE 1. Connector, plug, electrical, intervehicular.
