INCH-POUND
W-C-596/126C
20 January 2012
SUPERSEDING W-C-596/1268
8 August 2001
FEDERAL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, SPECIAL PURPOSE, CA8LE OUTLET, LOCKING, GROUNDING, 3 POLE, 4 WIRE, 20 AMPERES, 125/250 VOLTS, 50/60 HERTZ, 3-PHASE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and W-C-596.
Inches |
mm |
0.967 |
24.56 |
1.980 |
50.29 |
2.350 |
59.69 |
4.300 |
109.22 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Undimensioned pictorials are for reference purposes only.

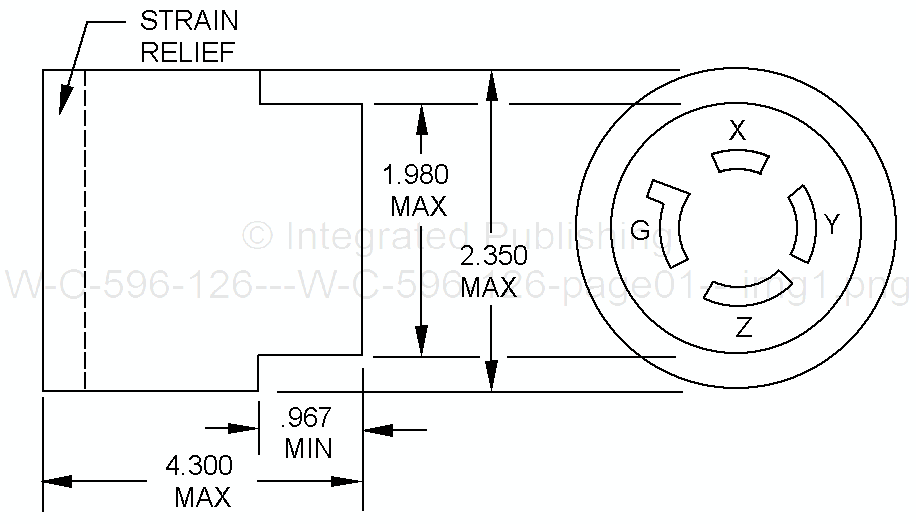

FIGURE 1. Configuration and dimensions.
AMSC N/A FSC 5935
