INCH-POUND W-C-596/168A
10 August 2006
SUPERSEDING W-C-596/168
28 October 1980
FEDERAL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, GENERAL PURPOSE, SINGLE, GROUNDING, 2 POLE, 3 WIRE, 30 AMPERES, 250 VOLTS, 50/60 HERTZ
Inactive for new design after 31 August 2000.
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall consist of this document and the latest issue in effect of W-C-596.

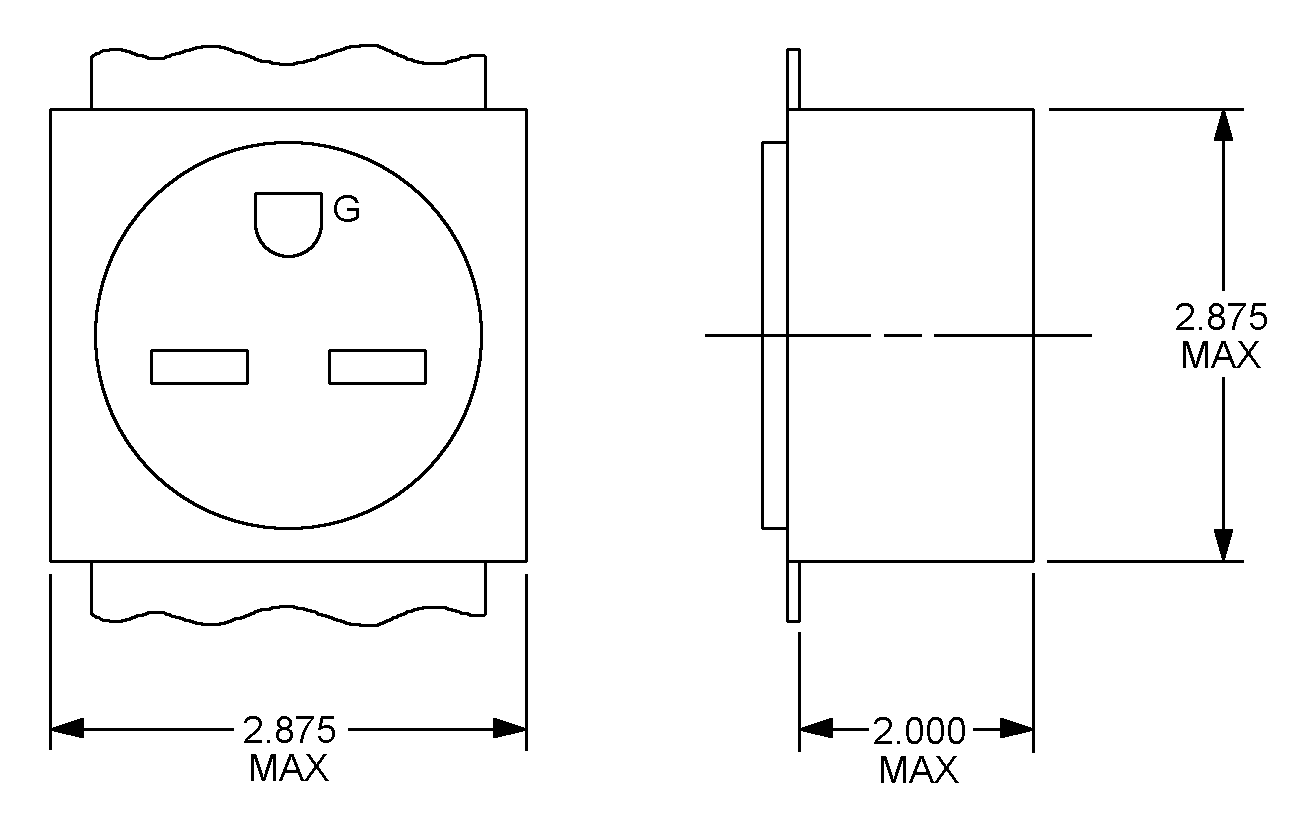

FIGURE 1. Configurations and dimensions.
AMSC N/A FSC 5935
