W-C-596/168A
Inches |
mm |
2.000 |
50.80 |
2.500 |
63.50 |
2.875 |
73.02 |
3.000 |
76.20 |
5.000 |
127.00 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

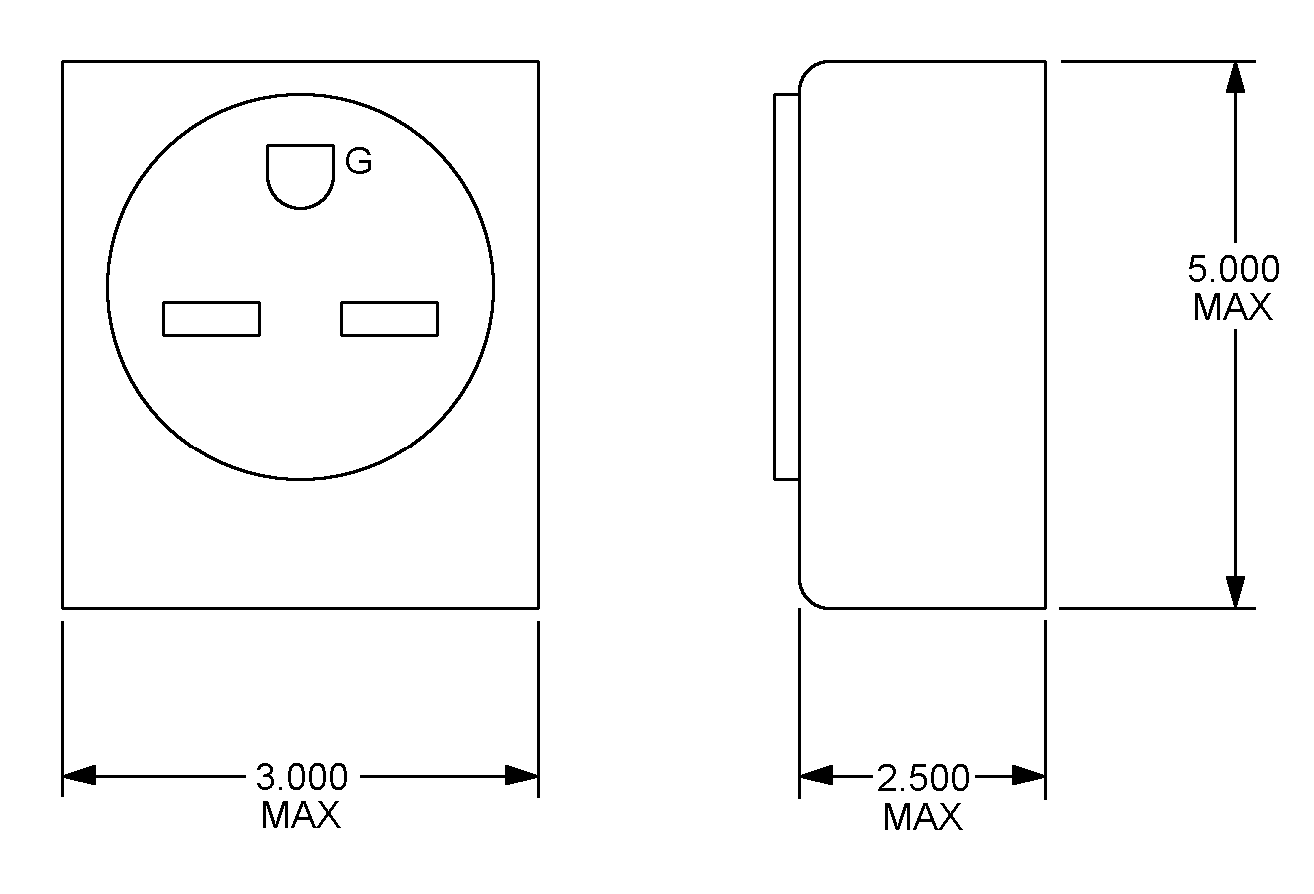

FIGURE 1. Configurations and dimensions - Continued.
REQUIREMENTS:
Configurations and dimensions: See figure 1.
Dimensions conform to ANSI-C73. (Revised and Redesignated as NEMA WD6) Ratings:
Voltage: 250 volts. Current: 30 amperes. Frequency: 50/60 hertz.
Mating connector: See W-C-596/169.
Part or Identifying Number (PIN): WC596/168-(dash number from table I).
