INCH-POUND
W-C-596/33D
20 July 2001
SUPERSEDING
W-C-596/33C
24 June 1983
FEDERAL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, ELECTRICAL, GENERAL PURPOSE, SINGLE,
GENERAL GRADE, 3 POLE, 3 WIRE, 30 AMPERES, 125/250 VOLTS, 50/60 HERTZ
The General Services Administration has authorized the use
of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall
consist of this document and the latest issue of W-C-596/GEN.
INACTIVE FOR NEW DESIGN
Inches
mm
2.000
50.80
2.500
63.50
2.875
73.03
3.000
76.20
5.000
127.00
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. For mounting dimensions, see W-C-596/GEN (center boss receptacles).
4. Undimensioned pictorials are for reference purposes only.

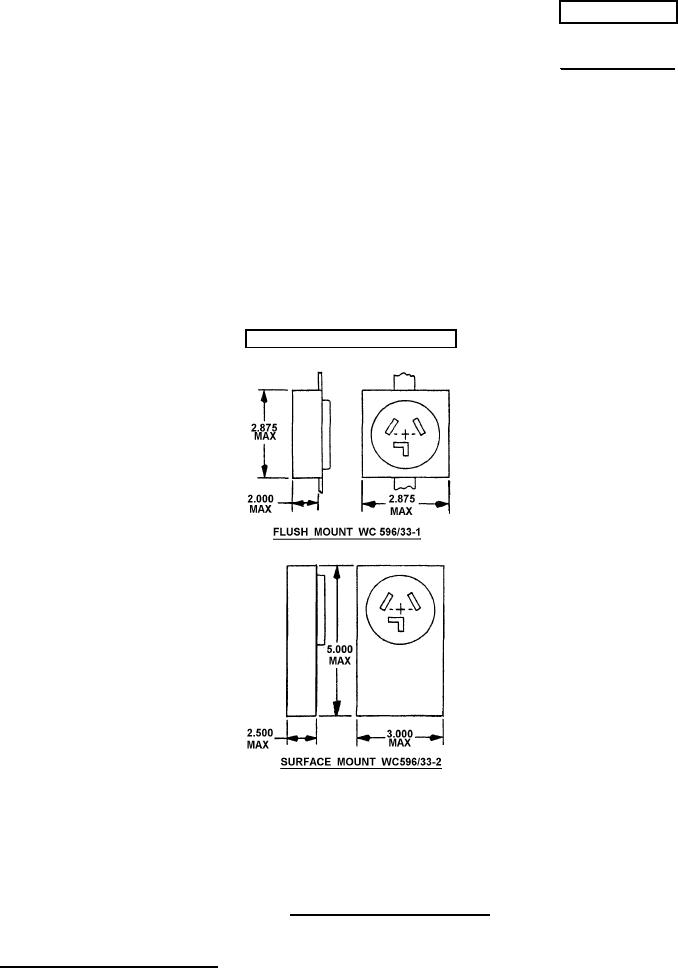

FIGURE 1. Configuration and dimensions.
AMSC N/A
1 of 3
FSC 5935
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
