CONNECTOR, RECEPTACLE, ELECTRICAL, GENERAL PURPOSE, DUPLEX,
GENERAL GRADE AND HOSPITAL GRADE, GROUNDING, 2 POLE, 3 WIRE,
20 AMPERES, 125 VOLTS, 50/60 HERTZ, BOX MOUNT AND SNAP-IN MOUNT
The General Services Administration has authorized the use
of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall
consist of this document and the latest issue of W-C-596/GEN.
1.750 MAX
2.875 MAX
1.125 MAX

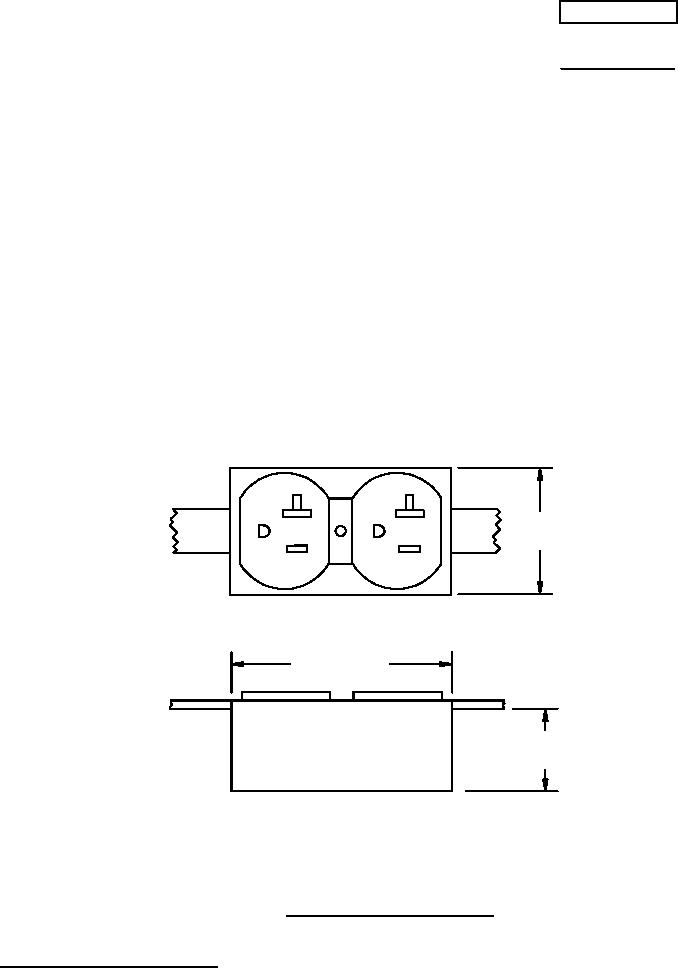

Box mount receptacle
FIGURE 1. Configurations and dimensions.
AMSC N/A
1 of 5
FSC 5935
