MIL-DTL-12883/47D
Inches
mm
.093
2.36
.125
3.18

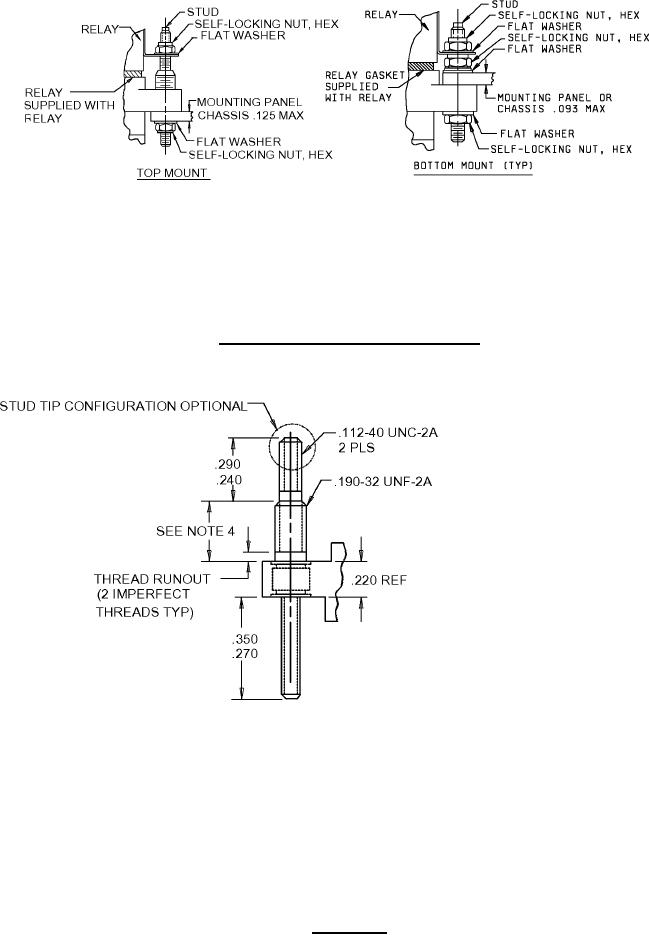

FIGURE 3. Socket mounting, fixed and loose studs.
Inches
mm
.05
1.27
.093
2.36
.112
2.84
.125
3.18
.190
4.82
.220
5.59
.240
6.10
.270
6.86
.290
7.37
.350
8.89
.500
12.70
.555
14.10
.719
18.26
.800
20.32
1.000
25.40
1.110
28.19
1.437
36.50
1.600
40.64
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. Unless otherwise specified, tolerances are ± .005 inch (0.25 mm) for three place decimals and ± .01
inch (0.25 mm) for two place decimals.
4. Length from top of socket flange to base of .112-40 UNC-2A thread:
-10 and 11 length shall be .318 ± .010 inch (8.08 ± .0.25 mm).
-04 and 05 length shall be .290 ± .010 inch (7.37 ± 0.25 mm).
FIGURE 4. Studs fixed.
