MIL-DTL-12883/48D
Inches
mm
.05
1.3
.112
2.84
.190
4.83
.312
7.92
.550
13.97
.580
14.73
.625
15.88
.703
17.86
1.100
25.40
1.160
29.46
1.406
35.71
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for general information only.
3.
Unless otherwise specified tolerances are ± .01 inch (0.25 mm) for two place decimals and ± .005
inch (0.13 mm) for three place decimals.

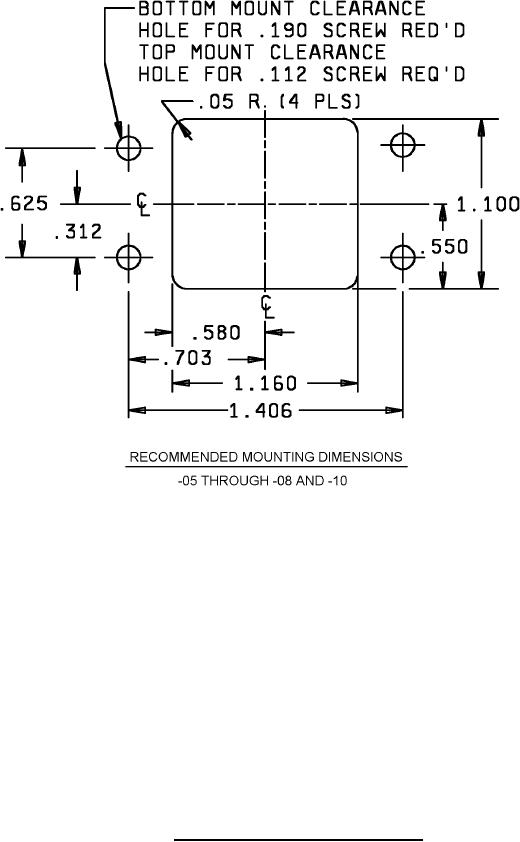

FIGURE 2. Recommended mounting dimensions.
