MIL-DTL-12883/48D
Inches
mm
.093
2.36
.125
3.18

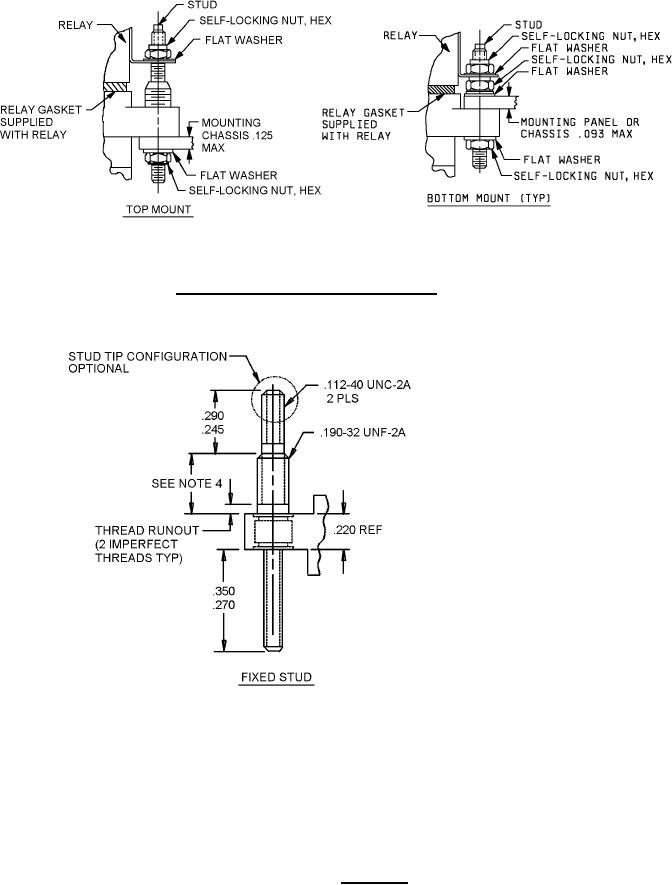

FIGURE 3. Socket mounting, fixed and loose studs.
Inches
mm
.093
2.36
.112
2.84
.125
3.18
.190
4.83
.220
5.59
.245
6.22
.270
6.85
.290
7.37
.350
8.89
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. Unless otherwise specified, tolerances are ± .005 inch (0.25 mm) for three place decimals and ± .01
inch (0.25 mm) for two place decimals.
4 Length from top of socket flange to base of .112-40 UNC-20 thread fixed stud:
-04 and -08 length shall be .318 ± .010 inch (8.08 ± 0.25 mm).
-02 and -06 length shall be .290 ± .010 inch (7.37 ± 0.25 mm).
FIGURE 4. Stud fixed.
6
