MIL-DTL-12883-8 Sockets And Accessories For Plug-In Electronic Components \(Electron Tube, Top Mounting, Saddle Type Without Shield Base, 7 Contact, Radial\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7

MIL-DTL-12883/8F

Inches

.002

0.05

.005

0.13

.040

1.02

.187

4.75

.281

7.14

.375

9.52

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is + .002 inch (0.05 mm).

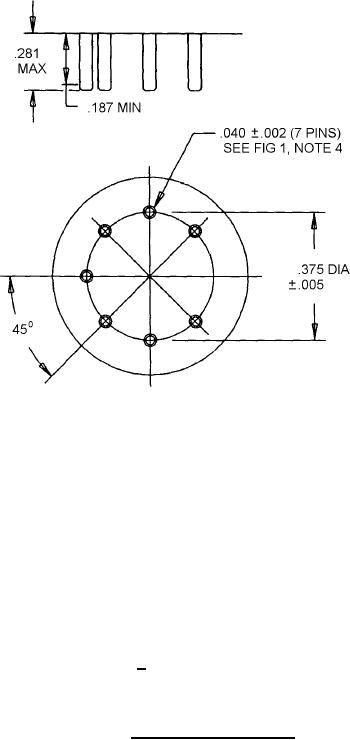

FIGURE 2. Mating-base dimensions.
