MIL-DTL-22992G
APPENDIX A
TABLE A-II. Connector voltage, phase, wire and frequency.
Voltage
Phase 0
No wire
60 Hz
400 Hz
28 Vdc
-
2
N/A
N/A
120 Vac 1/
1
2
X
X
240 Vac
1
2
X
X
120/240 Vac
1
3
X
N/A
120/208 Vac
3
4
X
X
240/416 Vac
3
4
X
X
277/480 Vac
3
4
X
N/A
1/ All ac connectors have a separate contact (or contacts) for
equipment system ground which is (are) electrically connected to
the connecter shell.
A.4 CABLE INTERCONNECTION
A.4.1 These connecters are designed for direct plug-in connection to equipment, or to other class L
connectors in "extension cord" fashion as shown on figure A-1. This is provided by a "one way" system
wherein each of the different numbered connector is designed and designated for use as shown in

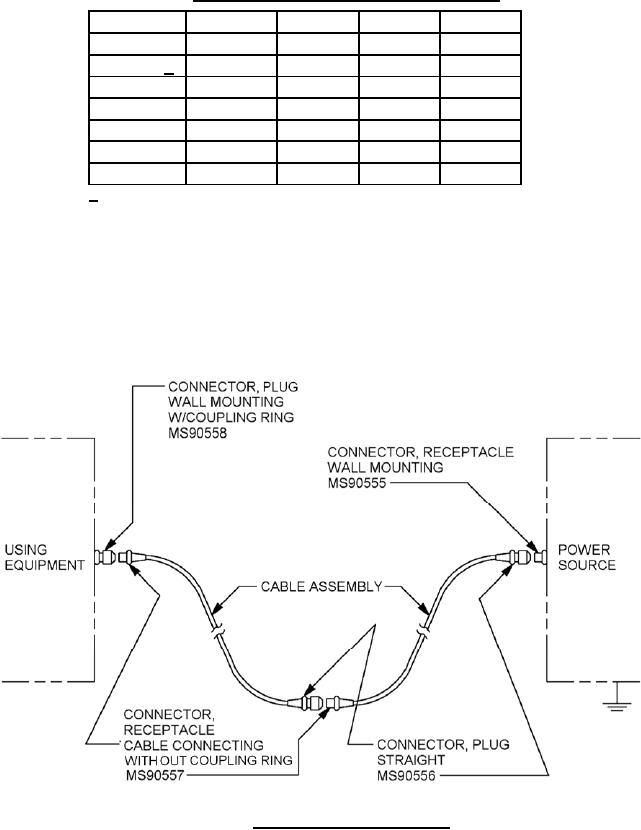

FIGURE A-1. Class L cable interconnection.
43
