MIL-DTL-22992G
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.

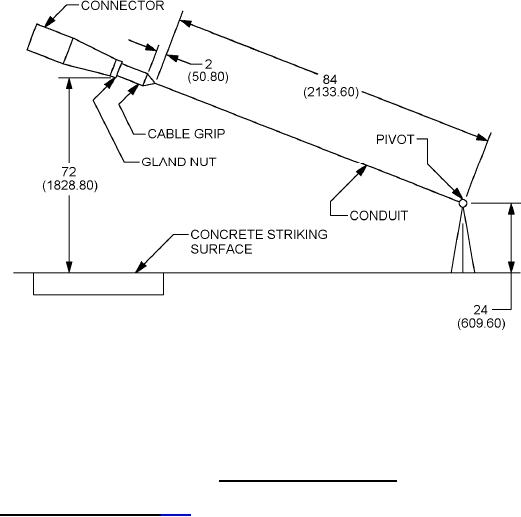

FIGURE 3. Typical fixture for drop test.
4.6.17 High-impact shock (see 3.20). Complete mated connectors with suitable adapters shall be
tested in accordance with method 207 of MIL-STD-202. The following details and exceptions shall apply:
a.
Mounting fixtures - In accordance with MIL-STD-202, method 207, standard mounting
fixtures for electrical-indicating switchboard meters and other panel-mounted parts.
b.
Electrical load and operating conditions - All contacts shall be wired in a series circuit
with at least 100 milliamperes of dc current flowing through the series circuit during
high-impact shock.
c.
Monitoring during test - A suitable device shall be used to monitor the current flow and
indicate any discontinuity which exceeds 10 micro-seconds interruption of current flow.
The grounding contacts of class L grounding connectors shall not be wired into the
series monitoring circuit.
d.
The mated connectors shall be held together only by the normal locking device cable
or wires shall be supported on a stationary frame not closer than 12 inches (305 mm)
from the connector assembly.
34
