MIL-DTL-24231/28C(SH)
ASSEMBLY, PLUGS FOR HULL INSERTS:
M24231/28-001, M24231/28-002 AND M24231/28-003
PLUG, HULL INSERT
4
5
6
18 O-RING
16
17
OUTBOARD
INSERT, HULL
(NOT FURNISHED)
O-RING 19
20
21
INBOARD
WASHER 13
14
15
12 NUT
10
11
RING, RETAINING
7
8
9
PARTS LIST FOR HULL INSERT PLUG ASSEMBLIES
NUMBER REQUIRED - ONE
FOR HULL
INSERT PLUG
O-RING
O-RING
RETAINING
INSERT
ASSY
NUT
WASHER
INSERT PLUG
RING
OUTBOARD
INBOARD
M24231/28-001 M24231/28-010 M24231/5-076 M24231/5-074 M24231/5-075
SIZE 2-329
SIZE 2-327
M24231/25-001
M24231/28-002 M24231/28-020 M24231/10-045 M24231/10-042 M24231/10-043
SIZE 2-334
SIZE 2-332
M24231/25-002
M24231/28-003 M24231/28-030 M24231/19-014 M24231/19-024 M24231/19-025
SIZE 2-342
SIZE 2-339
M24231/25-003

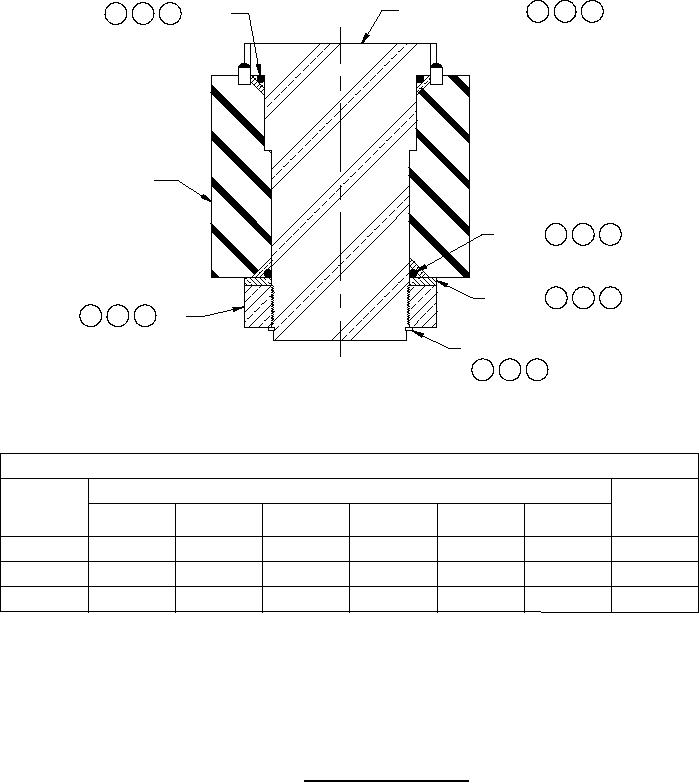

FIGURE 1. Plug assemblies, hull insert.
