MIL-DTL-24308/35 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Plug, Pin Contacts, Shell Size 4, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26


MIL-DTL-24308/35
M24308/35-513, -514
M24308/35-515, -516
27W2
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance for three place decimals is ±.005 inch (0.13 mm).

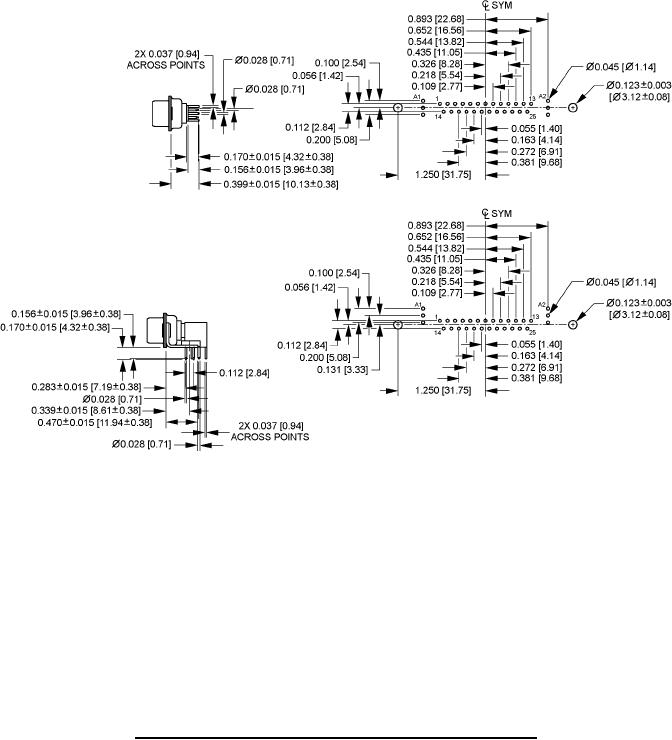

FIGURE 4. Terminations and layout arrangement for shielded connector - Continued.
