MIL-DTL-24308/37 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Plug, Pin Contacts, Shell Size 5, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20


MIL-DTL-24308/37
M24308/37-313, -314
M24308/37-315, -316
47W1

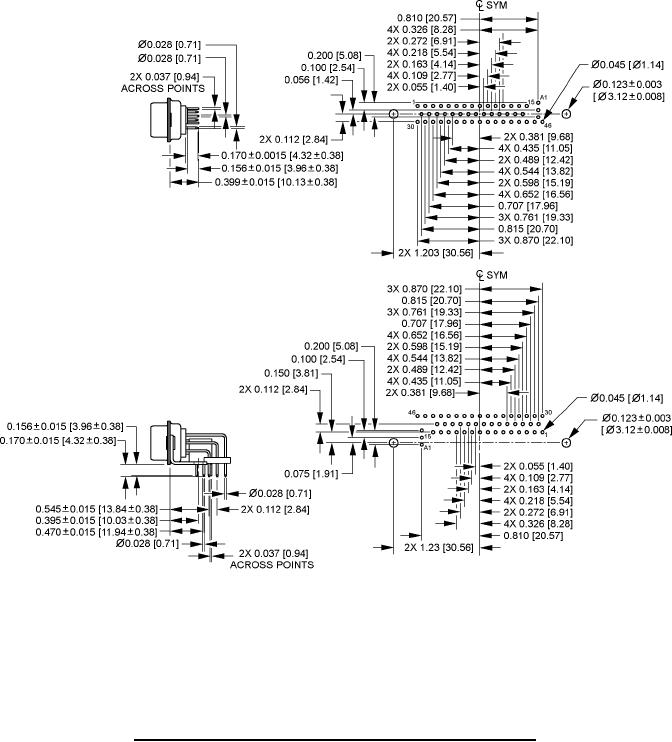

FIGURE 4. Terminations and layout arrangement for shielded connector - Continued.
