INCH-POUND
MIL-DTL-2726/12B
14 February 2006
SUPERSEDING
MIL-R-2726/12A(SH)
3 July 1986
DETAIL SPECIPICATION SHEET
RECEPTACLE, ELECTRICAL, 3-PIN GROUNDED, 40-AMPERE, 125-VOLT,
ALTERNATING CURRENT (SYMBOL NOS. 1144.1 AND 1144.2)
Inactive for new design after 28 June 1999.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-2726.
Inches
mm
0.02
.001
0.13
.005
0.79
.031
1.57
.062
3.17
.125
5.16
.203
10.31
.406
19.05
.750
23.82
.938
27.79
1.109
43.00
1.693
49.22
1.938
50.80
2.000
76.20
3.000
Symbol no. 1144.1

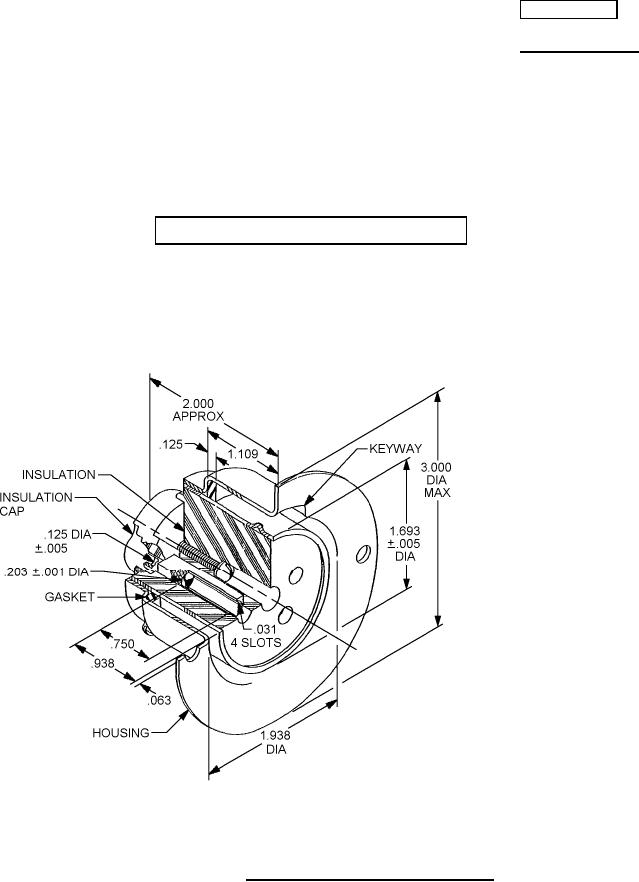

FIGURE 1. Receptacle (metal housing and shell).
