MIL-DTL-2726/12B
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9000-S6202-73882, pc 65, symbol 1144.1.
5. Part or Identifying Number (PIN) M2726/12-001.

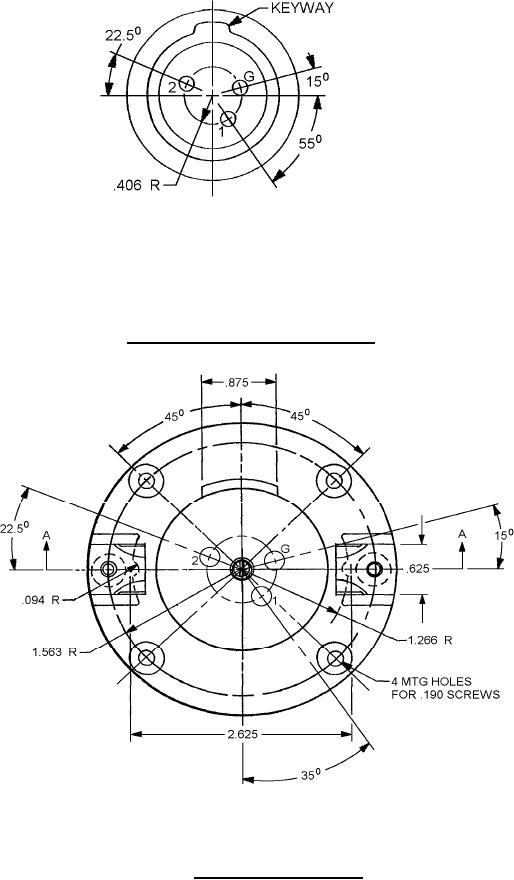

FIGURE 1. Receptacle (metal housing and shell) - Continued.
Symbol no. 1144.2
FIGURE 2. Receptacle (plastic body).
