MIL-DTL-2726-44 Receptacle, Portable Triple Outlet, Electrical, 60 - Ampere, 500 - Volt, 3 - Phase Grounded \(Symbol No. 765.3\)

Pages 1 - 2 - 3 - 4 - 5

MIL-DTL-2726/44B

Inches

.531

13.49

1.875

47.62

2.438

61.92

3.750

95.25

4.000

101.60

5.500

139.70

12.875

327.02

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm).

4. Supersedes: Drawing 9-S-5544-L, symbol 765.1.

5. Part or Identifying Number (PIN) M2726/44-001.

6. PIN M2726/44-002.

7. PIN M2726/26-001.

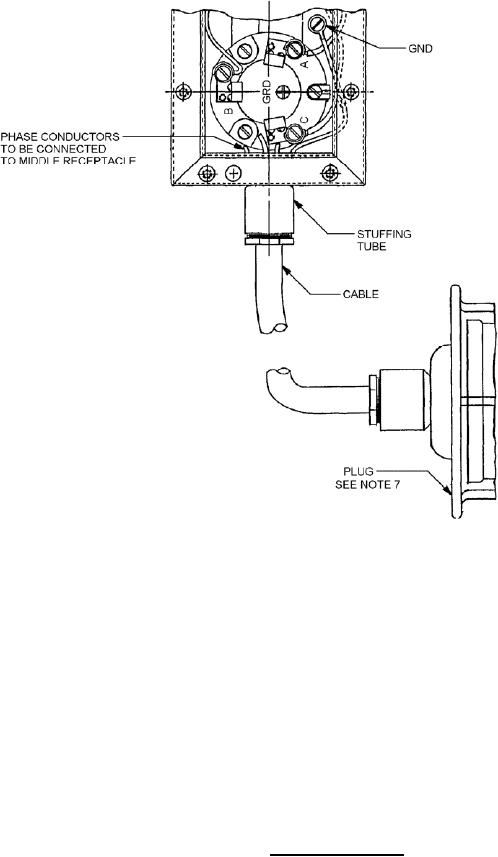

FIGURE 1. Portable triple outlet � Continued.
