MIL-DTL-2726-44 Receptacle, Portable Triple Outlet, Electrical, 60 - Ampere, 500 - Volt, 3 - Phase Grounded \(Symbol No. 765.3\)

Pages 1 - 2 - 3 - 4 - 5

MIL-DTL-2726/44B

Inches

.001

.02

.250

6.35

.344

8.74

.372

9.45

.385

9.78

.562

14.27

.750

19.05

.812

20.62

.875

22.22

1.312

33.32

1.375

34.92

3.312

84.12

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm).

4. Angular tolerance is � 0.5�.

5. PIN M2726/44-002.

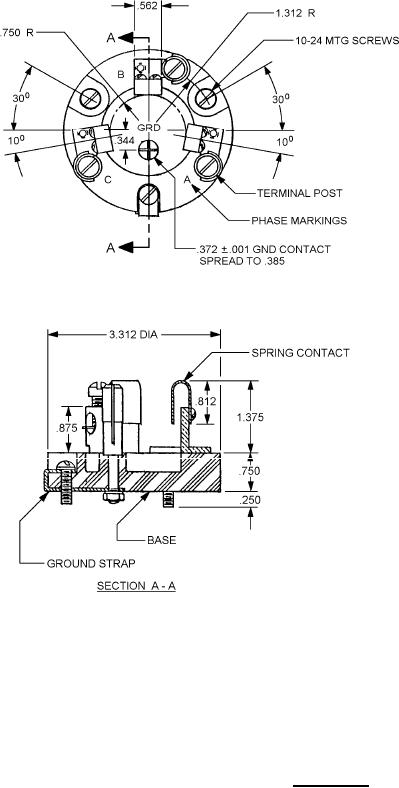

FIGURE 2. Receptacle.
