MIL-DTL-2726-67 Receptacle, Electrical, Enclosed, 10-Ampere, 125-Volt, 3-Phase, Grounded \(Symbol No. 741.2\)

Pages 1 - 2 - 3 - 4

MIL-DTL-2726/67B

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � 0�30' on angles.

4.. Supersedes: Drawing 9000-S6202-74159.

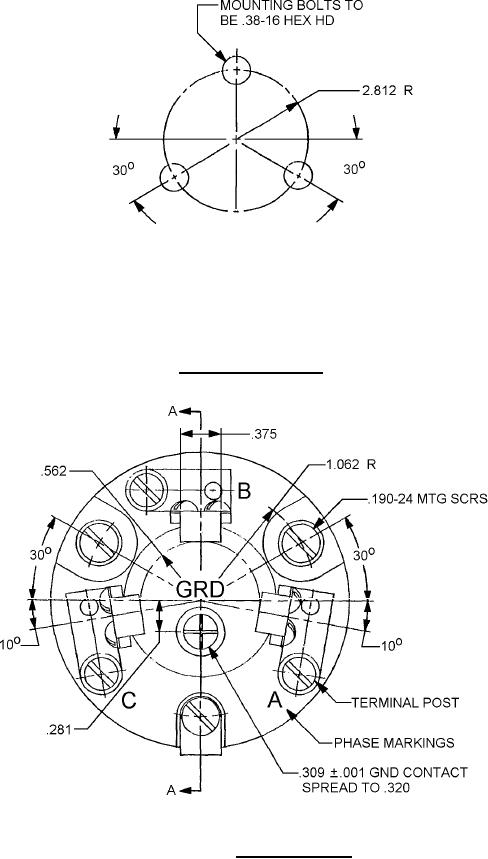

FIGURE 1. Receptacle assembly � Continued.

FIGURE 2. Receptacle fitting.
