MIL-DTL-2726/67B
Inches
mm
Inches
mm
20.62
.812
0.03
.001
25.40
1.000
.190
4.83
26.97
.281
1.062
7.14
30.18
.309
1.188
7.85
34.93
.312
1.375
7.92
49.3
.320
1.94
8.13
61.11
2.406
.375
9.53
69.85
2.750
.38
9.7
2.812
.562
71.42
14.27
4.375
111.13
.625
15.88
5.688
144.48
19.05
.750
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± 0°30' on angles.

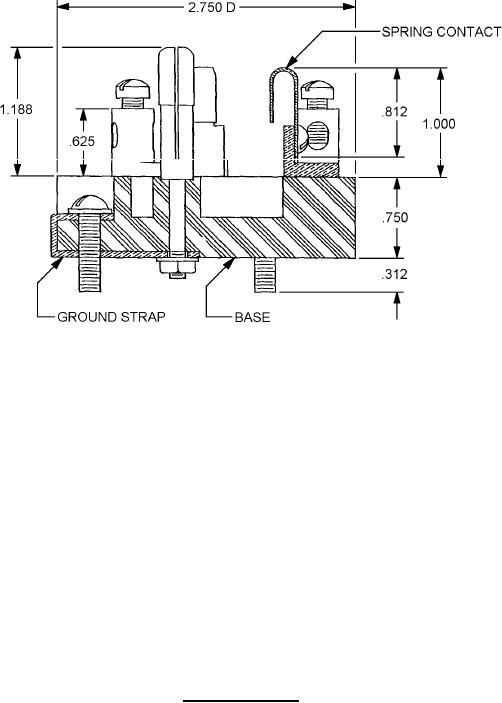

FIGURE 2. Receptacle fitting Continued
REQUIREMENTS
Dimensions and configurations: See figures 1 and 2.
Effectiveness of enclosure: Watertight in accordance with MIL-STD-108.
3
