MIL-DTL-2726-68 Receptacle, Plug, Connector, Electrical, 10-Ampere, 125-Volt, 3-Phase, Grounded \(Symbol No. 706.1\)

Pages 1 - 2 - 3 - 4

MIL-DTL-2726/68D

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � 0�30' on angles.

4. Supersedes: Drawing 9-S-4797-L, symbol 706.

FIGURE 1. Plug assembly � Continued.

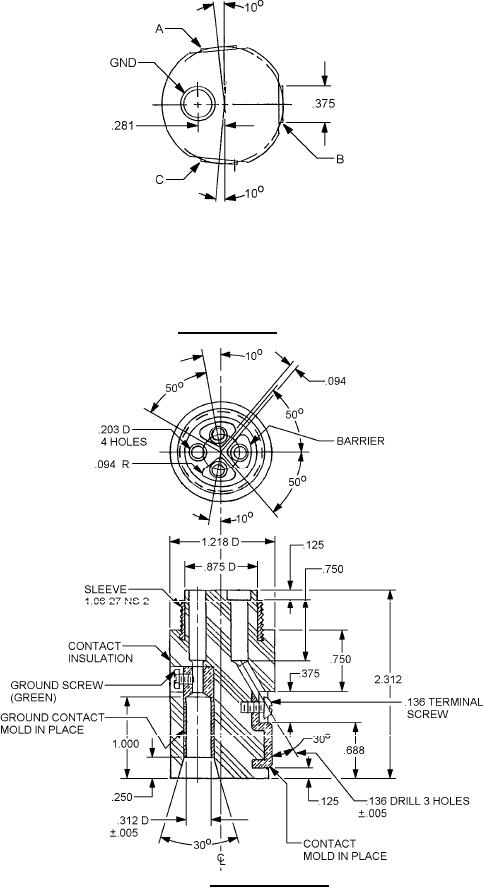

FIGURE 2. Plug tip assembly.
