MIL-DTL-2726/68D
Inches
mm
Inches
mm
17.48
0.03
.688
.005
19.05
2.39
.750
.094
22.23
3.18
.875
.125
25.40
3.45
1.000
.136
27.0
5.16
1.06
.203
30.94
6.35
1.218
.250
36.53
7.14
1.438
.281
49.3
7.92
1.94
.312
53.98
9.53
2.125
.375
58.72
14.27
2.312
.562
60.33
2.375
15.47
.609
105.78
4.125
Part or Identifying Number (PIN): M2726/68-002
SH9443
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± 0°30' on angles.

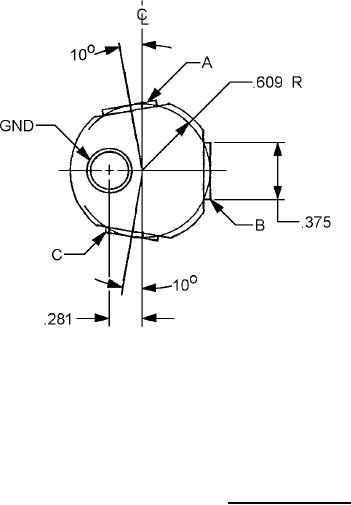

FIGURE 2. Plug tip assembly - Continued.
REQUIREMENTS
Dimensions and configurations: See figures 1 and 2.
Effectiveness of enclosure: Watertight in accordance with MIL-STD-108 when coupled with mating
receptacle.
Strain relief: 30 Pounds.
Material: Body and cap brass.
Contact insulation in accordance with ASTM-D5948 type MFG (brown).
Ground contact brass.
Stuffing tube: MIL-S-19622/3, PIN: M19622/3-003.
Packing: MIL-S-19622/18, PIN M19622/18-0018.
Mating receptacle: MIL-DTL-2726/67, PIN M2726/67-001.
Test cable: In accordance with MIL-DTL-24643/3.
3
