INCH-POUND
MIL-DTL-28748/4F
9 September 2004
SUPERSEDING
MIL-DTL-28748/4E
11 May 1999
DETAIL SPECIFICATION SHEET
CONNECTOR, ELECTRICAL, RECTANGULAR,
RACK AND PANEL, CRIMP TYPE REMOVABLE SOCKET CONTACTS,
SIZES 16 AND 20
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-28748.
Connector
NOTE: The polarization feature (groove on the receptacle shell, pin on the plug shell) shall be adjacent to
the side closest to the number 1 or A contact position.
Configuration A

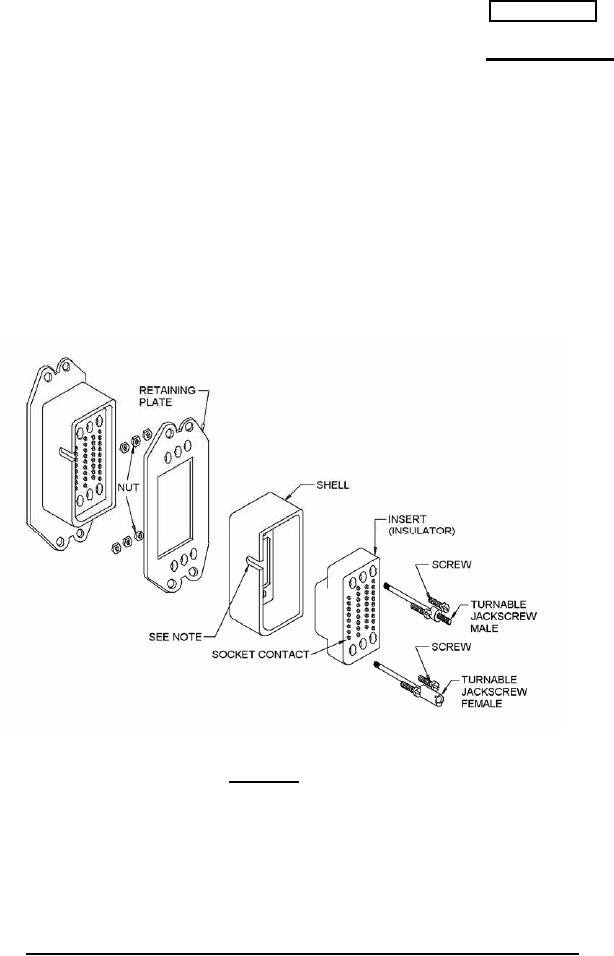

FIGURE 1. Receptacle connector with retaining plate, receptacle shell, and turnable jackscrews.
AMSC N/A
FSC 5935
