MIL-DTL-28748/4F
Inches
mm
Inches
mm
Inches
mm
7.62
.300
3.63
.143
0.05
.002
9.40
.370
3.81
.150
0.13
.005
9.53
.375
4.37
.172
0.25
.010
11.43
.450
4.76
.1875
0.41
.016
16.76
.660
4.95
.195
1.91
.075
22.35
.880
5.79
.228
2.18
.086
23.01
.906
6.60
.260
2.29
.09
30.99
1.220
The maximum insertion and withdrawal force (connector assembly) shall be 8.75 lbf (38.92 N) pounds.
Insert with 7 contacts
Insert designator A

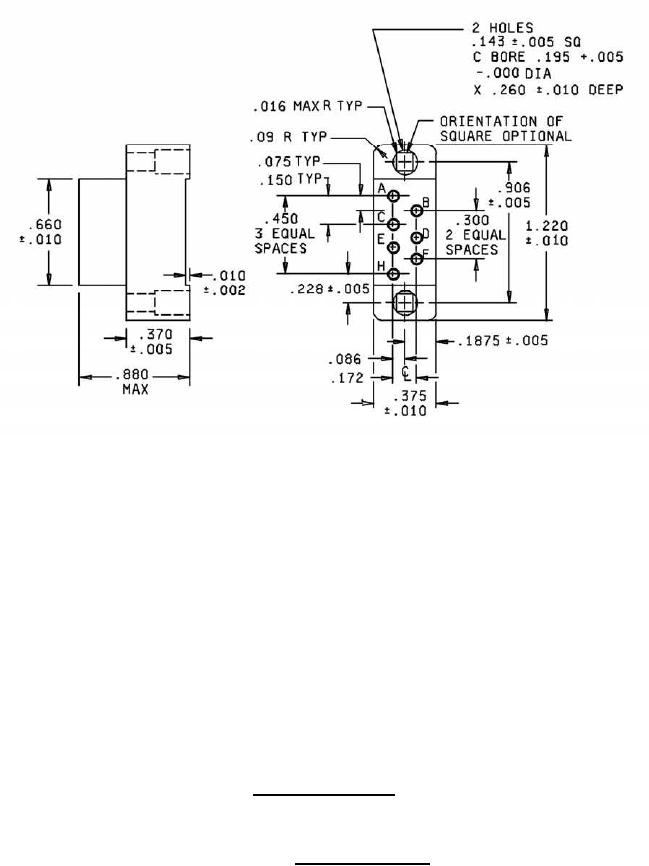

FIGURE 2. Insert arrangements.
