INCH-POUND
MIL-DTL-28748/5E
9 September 2004
SUPERSEDING
MIL-C-28748/5D
25 March 1993
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL RECTANGULAR,
RACK AND PANEL, SOLDER TYPE PIN CONTACTS, SIZE 20
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-28748.
Connector
NOTE: The polarization feature (pin on the plug shell, groove on the receptacle shell) shall be adjacent to
the side closest to the number 1 or A contact position.
Configuration A

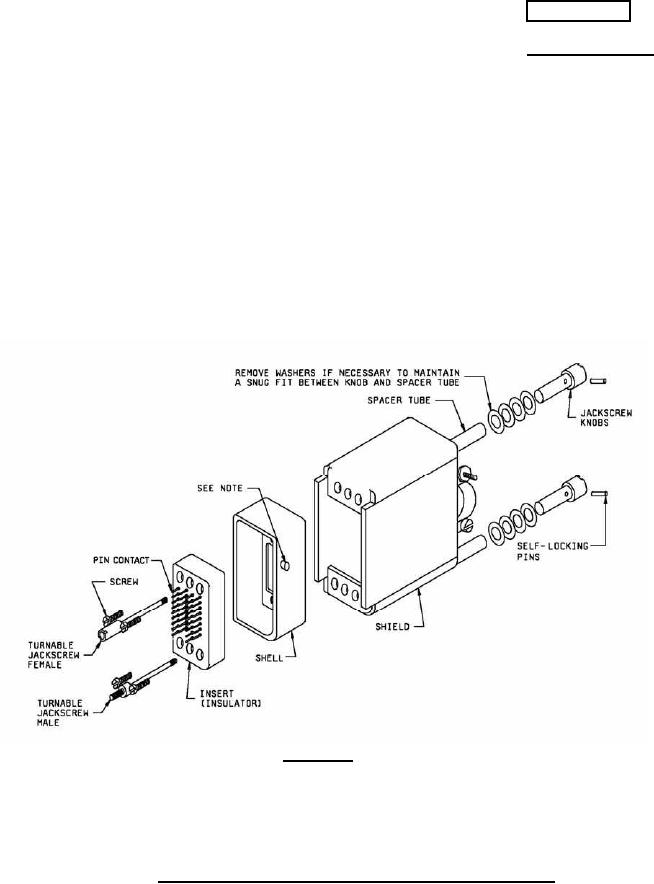

FIGURE 1. Connector with shield, plug shell, jackscrews, and guidepins.
AMSC N/A
FSC 5935
