MIL-DTL-28748/5E
Inches
mm
.002
0.05
.003
0.08
.005
0.13
.008
0.20
.010
0.25
.016
0.41
.02
0.5
.020
0.51
.062
1.57
.075
1.91
.09
2.3
.093
2.36
.110
2.79
.117
2.97
.118
3.00
.125
3.18
.143
3.63
.151
3.84
.180
4.57
.195
4.95
.234
5.97
.242
6.15
.250
6.35
.260
6.60
.365
9.72
.383
9.73
.619
12.75
.766
19.45
1.238
31.45
1.655
42.04
1.806
44.97
2.290
58.17
2.728
59.29

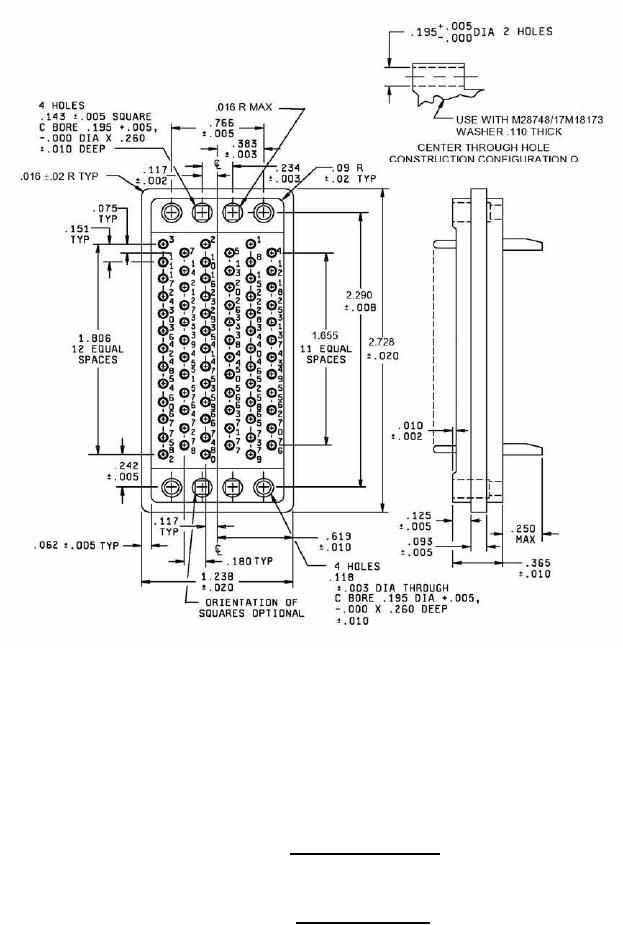

Configuration J - Suitable for all applications, except one-piece jackscrews.
Configuration Q - For long jackscrews and shield only (through hole alternate construction).
Insert with 75 contacts
Insert designators J and Q
FIGURE 2. Insert arrangements - Continued.
11
