INCH-POUND
MIL-DTL-28748/8F
12 August 2009
SUPERSEDING
MIL-C-28748/8E
1 April 1993
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR,
RACK AND PANEL, SOLDER TYPE SOCKET CONTACTS, SIZE 22
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-DTL-28748
Connector
Configuration A

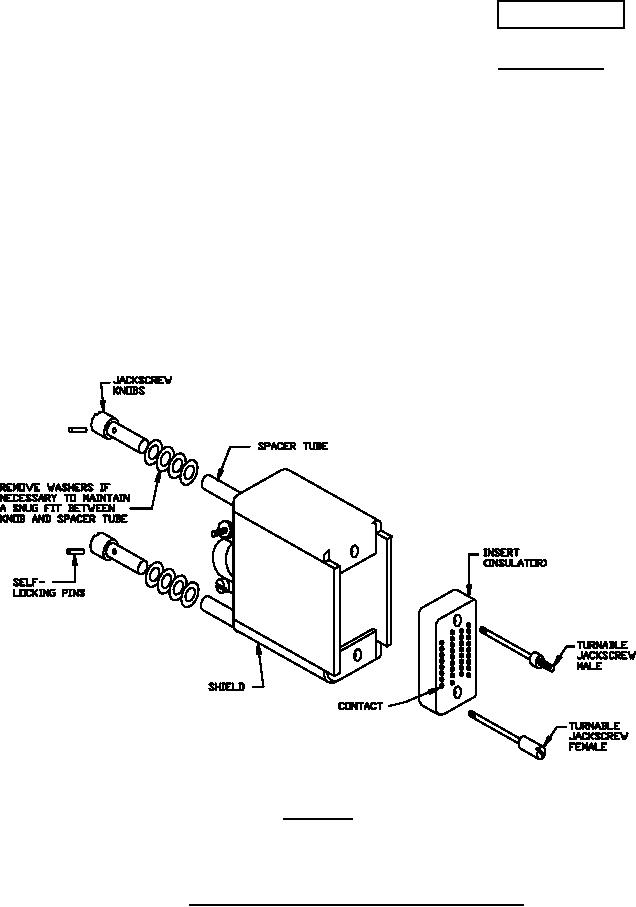

FIGURE 1. Connector with shields, jackscrews, and guidepins.
AMSC N/A
FSC 5935
