MIL-DTL-28748/8F
Connector size
E
A
B
C
D
Insert
(number of
± .005
R
max
max
min
min
designator
contacts)
(0.13)
.875
.305
.230
.430
.562
.031
N
4
(22.23)
(7.75)
(5.84)
(10.92)
(14.27)
(0.79)
.875
.305
.230
.430
.562
.031
P
7
(22.23)
(7.75)
(5.84)
(10.92)
(14.27)
(0.79)
.975
.375
.300
.530
.625
.062
Q
14
(24.77)
(9.53)
(7.62)
(13.46)
(15.88)
(1.57)
1.165
.375
.300
.730
.814
.062
R
20
(29.59)
(9.52)
(7.62)
(18.54)
(20.68)
(1.57)
1.350
.375
.300
.910
1.000
.062
S
26
(34.29)
(9.52)
(7.62)
(23.11)
(25.40)
(1.57)
1.344
.480
.410
.900
1.032
.062
T
34
(34.14)
(12.19)
(10.41)
(22.86)
(26.21)
(1.57)
1.595
.480
.410
1.140
1.281
.062
U
44
(40.51)
(12.19)
(10.41)
(28.96)
(32.54)
(1.57)
1.715
.480
.410
1.270
1.408
.062
V
50
(43.56)
(12.19)
(10.41)
(32.26)
(35.76)
(1.57)
Receptacle shell
Configuration B

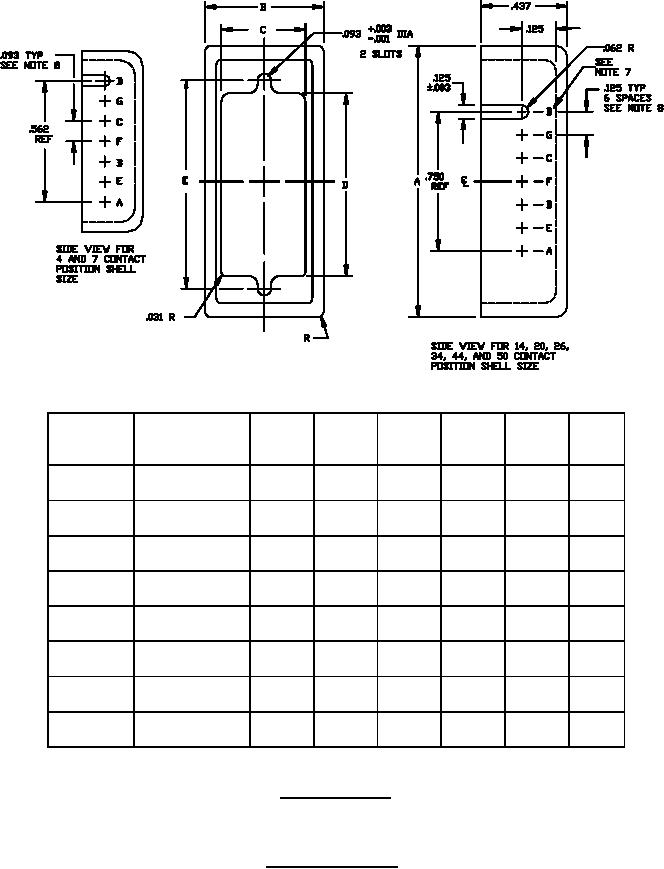

FIGURE 2. Shell configurations Continued.
