INCH-POUND
MIL-DTL-39024/11G
2 July 2012
SUPERSEDING
MIL-J-39024/11F
13 April 1993
DETAIL SPECIFICATION SHEET
JACK, TIP, TEST POINT TYPE, PRINTED WIRING TYPE,
SINGLE TEST POINT, RIGHT ANGLE, 2-LEG MOUNTING, LOW VOLTAGE, .080
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-39024.
TOP HOLE
088 MAX DIA
(SEE TABLE I)
.078
Inches
mm
.156
.030
0.76
.052
1.32
.078
1.98
.088
2.24
A
.156
3.96
.200
5.08
B
.400
10.16
.460
11.68
.200
MOUNTING TO FIT
.030
.052 DIA HOLE
.400 +.02 -.01
SEE OPERATING NOTES
.460

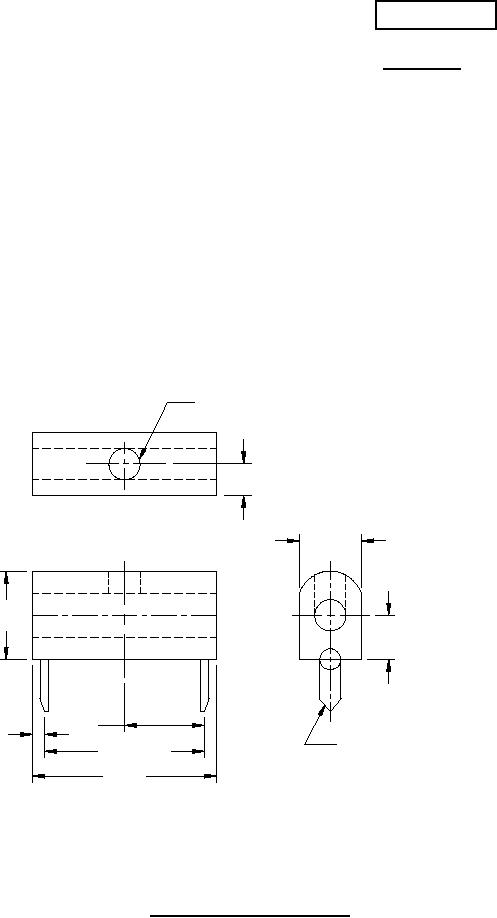

FIGURE 1. Configuration and dimensions.
