MIL-DTL-55302/102E

Inches

.015

.38

.050

1.27

.125

3.18

.250

6.35

.312

7.92

.350

8.89

1.000

25.40

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are �.005 (0.13 mm).

4. Mounting brackets assembled with the insulator will have the clamping hardware shipped loose.

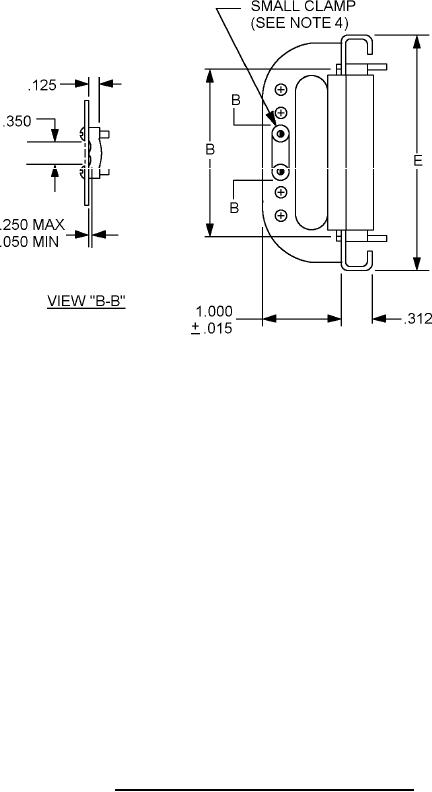

FIGURE 3. Mounting bracket assembly with small clamp.
