MIL-DTL-55302/102E

Inches

.062

1.57

.128

3.25

.250

.6.35

.312

7.92

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are �.005 (0.13 mm).

4. Mounting brackets assembled with the insulator will have the clamping hardware shipped loose.

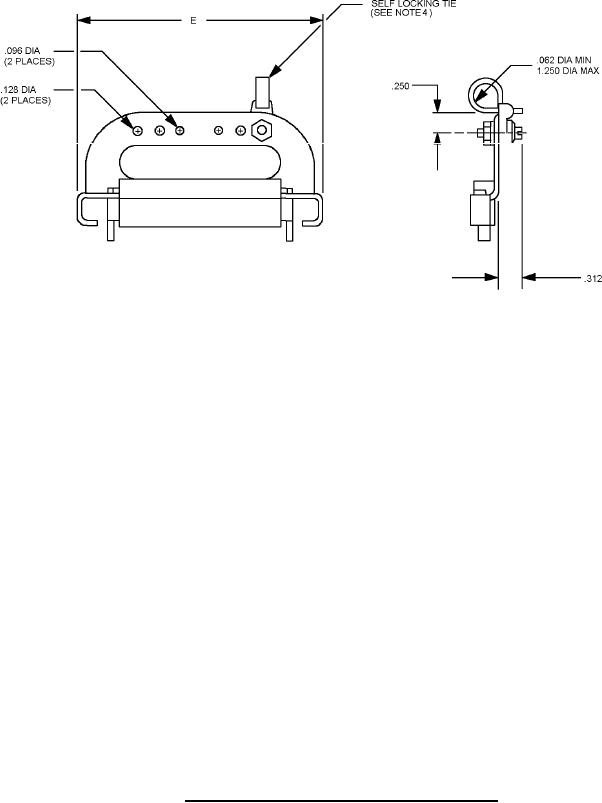

FIGURE 5. Mounting bracket assembly with self locking tie.
