MIL-DTL-55302/113F

Inches

.005

.13

.006

.15

.010

.25

.055

1.40

.065

1.68

.069

1.75

.078

1.98

.100

2.54

.125

3.18

.130

3.30

.180

4.57

.187

4.75

.230

5.84

.247

6.27

.250

6.35

.265

6.73

.295

7.49

.332

8.43

.500

12.70

.405

10.29

.800

20.32

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are �.005 (0.13 mm) on three place decimals.

4. These connectors mate with connectors specified in MIL-DTL-55302/27.

5. Numbers indicating end cavities and lines indicating every fifth cavity are stamped on housing.

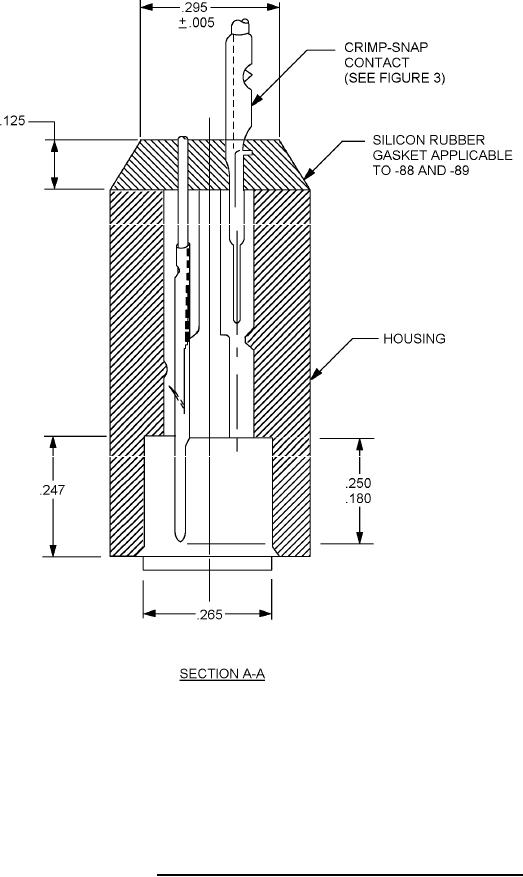

FIGURE 1. Connectors, housing, plug, .100 (2.54 mm) square grid - Continued.
