MIL-DTL-55302-113 Connectors, Printed Circuit Subassembly And Accessories: Plug, Straight-Thru, 30 Thru 140 Contact Positions, Crimp Removable Contacts \(.100 Sq. Grid\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-DTL-55302/113F

Inches

.001

0.03

.067

1.70

.010

0.25

.080

2.03

.025

0.64

.100

2.54

.030

0.76

.195

4.95

.035

0.89

.215

5.46

.044

1.12

.372

9.45

.060

1.52

.655

16.61

.063

1.60

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are �.005 (0.13 mm) on decimals.

4. Contact crimp for use with (AWG) wire range no. 22 to no. 26, insulation range .036 (0.91 mm) to

.054 (1.37 mm).

5 Contact supplied loose piece, unless otherwise specified, PIN M55302/113-05. Contacts may be

supplied on reel for PIN M55302/113-06.

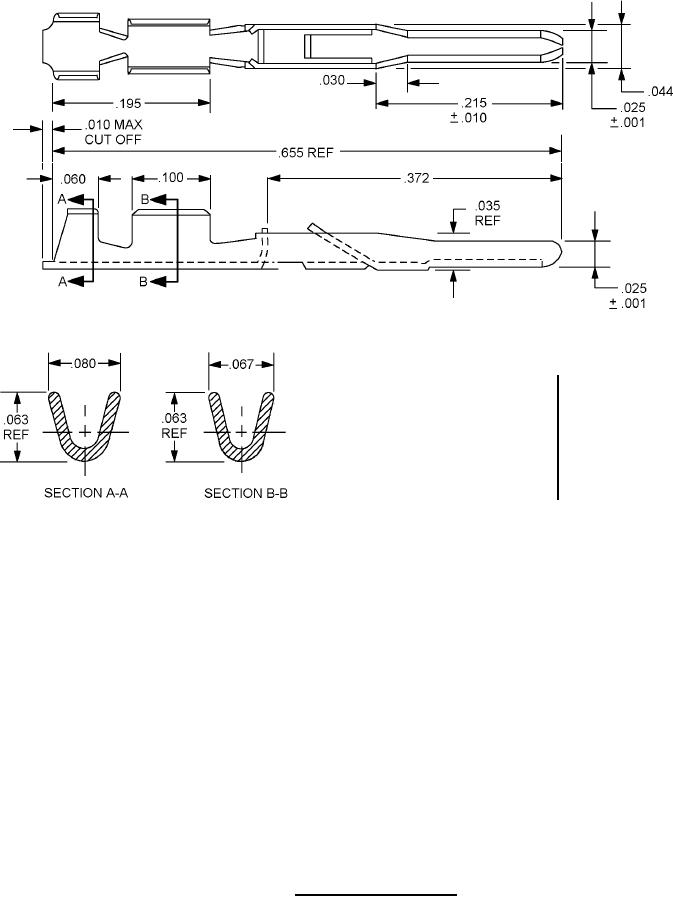

FIGURE 3. Pin, contact, crimp-snap.
