MIL-DTL-55302/113F

Inches

.045

1.14

.138

3.51

.055

1.40

.174

4.42

.070

1.78

.180

4.57

.075

1.91

.312

7.92

.080

2.03

.325

8.26

.086

2.18

.700

17.78

.110

2.79

.960

24.38

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are �.005 (0.13 mm) on decimals.

4. This connector mates with the external key type connectors specified in MIL-DTL-55302/27 and is

equipped with mounting hardware, male or female in accordance with table III.

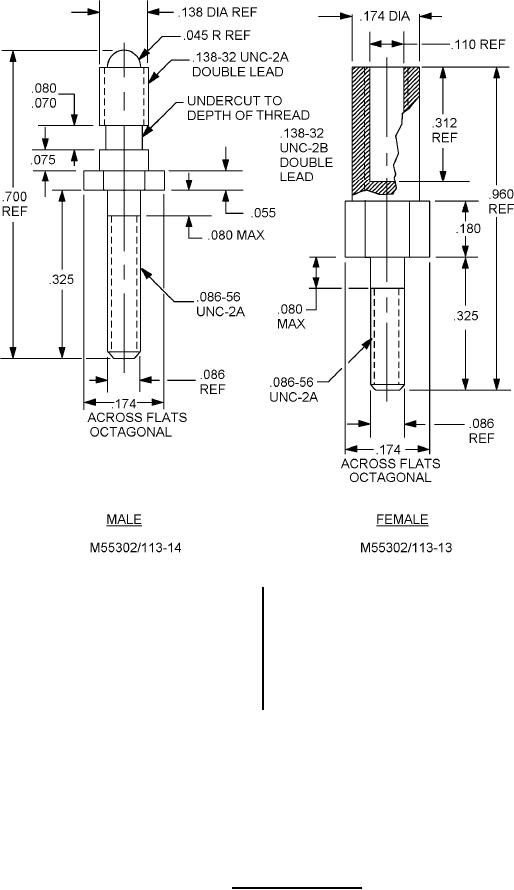

FIGURE 4. Mounting hardware.
