INCH-POUND
MIL-DTL-55302/150C
18 February 2005
SUPERSEDING
MIL-C-55302/150B
17 November 1988
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
PLUG WITH SOCKET CONTACTS, 2.114 INCHES LENGTH, 2 KEYING PINS,
FOR PRINTED WIRING BOARDS (.100 INCH SPACING)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.
Inches
mm
Inches
mm
.006
0.15
.248
6.30
.050
1.27
.252
6.40
.071
1.80
.305
7.75
.100
2.54
.317
8.05
.122
3.10
1.800
45.72
.153
3.89
2.114
53.70
.200
5.08
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm).
4. Standoffs are located between each cable hole and between each hole and contact hole set.

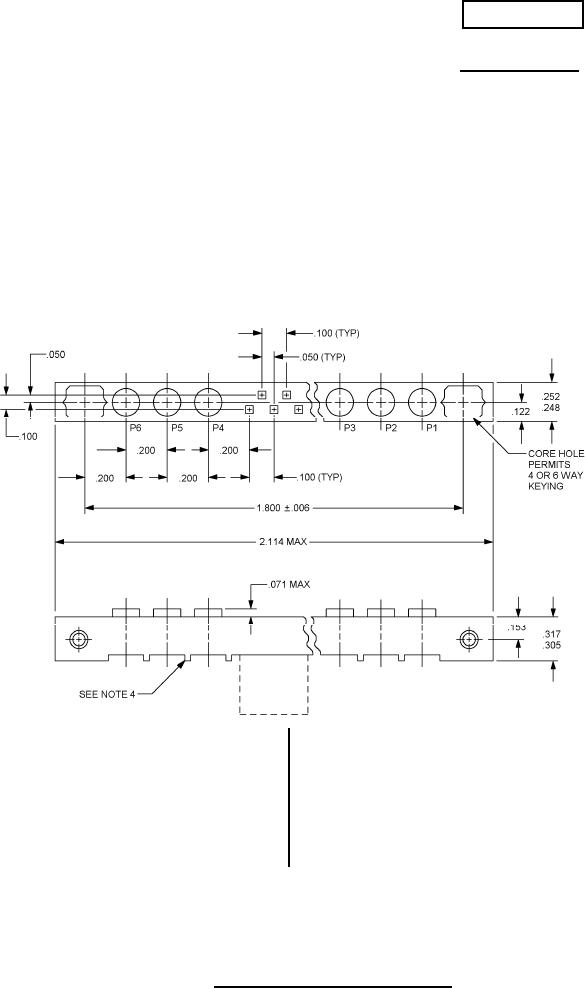

FIGURE 1. Connector, plug (.100 inch spacing).
AMSC N/A
FSC 5935
