MIL-DTL-55302-150 Connectors, Printed Circuit Subassembly And Accessories: Plug With Socket Contacts, 2.114 Inches Length, 2 Keying Pins, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-DTL-55302/150C

Inches

.004

0.10

.118

3.00

.030

0.76

.200

5.08

.050

1.27

.218

5.54

.060

1.52

.240

6.10

.070

1.78

.32

8.13

.100

2.54

.370

8.40

.106

2.69

1.80

45.7

.110

2.79

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

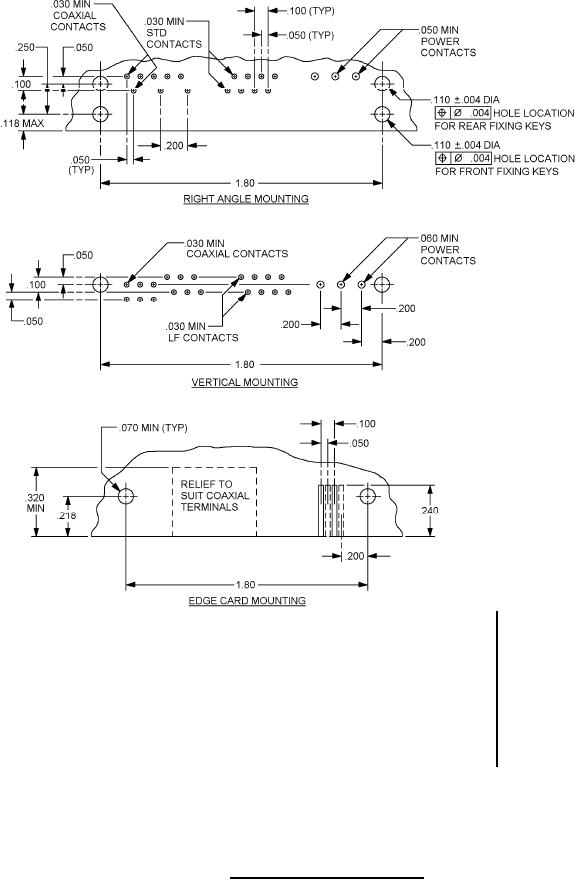

FIGURE 2. Recommended hole patterns.
