MIL-DTL-55302/150C

Inches

.004

0.10

.374

9.50

.008

0.20

.809

20.55

.116

2.95

.900

22.86

.126

3.20

1.618

41.10

.187

4.75

1.800

45.72

.197

5.00

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

4. Floating mount panel thickness .085 (2.15 mm) maximum.

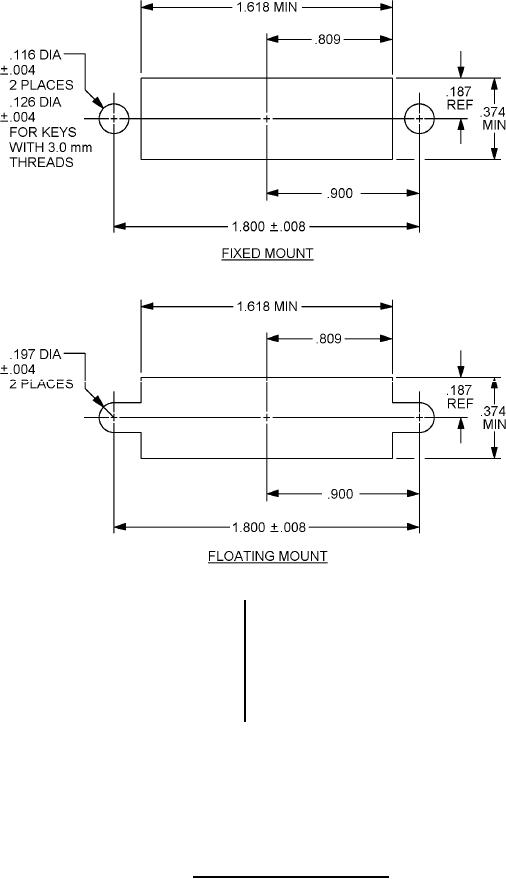

FIGURE 6. Recommended panel cutouts.
