INCH-POUND
MIL-DTL-55302/32G
24 March 2004 _
SUPERSEDING
MIL-C-55302/32F
7 June 1993
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
CONTACTS, SOLDER EYELET AND WRAPPOST REMOVABLE TYPES
This specification is approved for used by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.
Inches
mm
.030
0.76
.040
1.02
.060
1.52
.090
2.29
.180
4.57
.220
5.59
.298
7.57
.322
8.18
.600
5.24

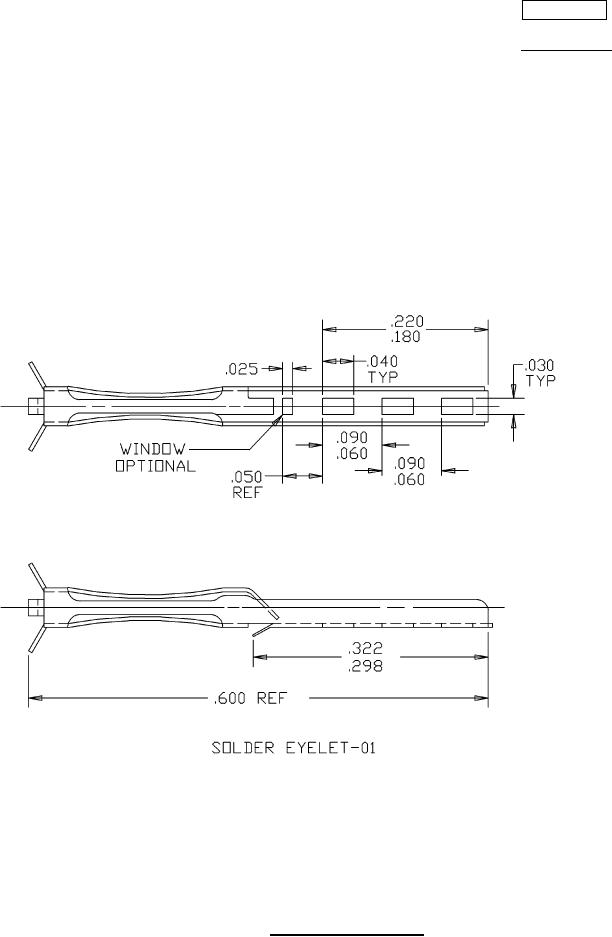

FIGURE 1. Contacts, removable type.
AMSC N/A
FSC 5935
