MIL-DTL-55302/32G

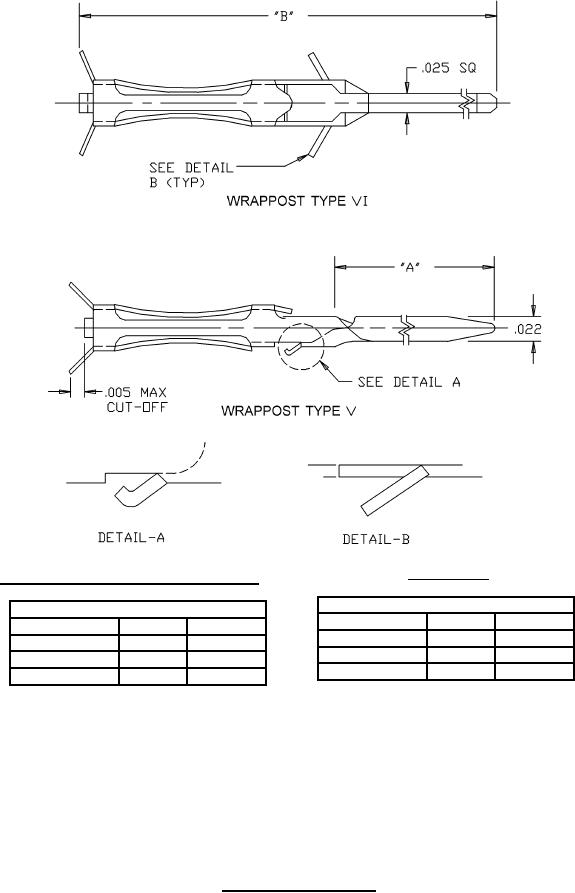

Detail B PINs.
Detail A Part or Identifying Numbers (PINs).
Wrappost contacts, type VI
Wrappost contacts, type V
PIN
A
B max
PIN
A
B max
M55302/32-05
.425
.795
M55302/32-02
.425
.795
M55302/32-06
.585
.955
M55302/32-03
.585
.955
M55302/32-07
.745
1.115
M55302/32-04
.745
1.115
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Maximum wire size: No. 26 AWG
5. Use contact extraction tool M81969/9-01 for type V contacts.
6. Use contact extraction tool 1-265871-7 (or equivalent) for type VI contacts.
FIGURE 1. Contacts, removable type - Continued.
2
