INCH-POUND
MIL-DTL-55302/78D
12 November 2004
SUPERSEDING
MIL-C-55302/77C (USAF)
17 March 1989
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
KEY, POLARIZING, CONNECTORS, ELECTRICAL PRINTED WIRING BOARDS
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.
NOTES:
NOTES:
1. Material: In accordance with L-P-410 (nylon 6/10)
1. Material: Glass filled acetal plastic in
2. MIL-DTL-55302/72, and MIL-DTL-55302/73.
accordance with ASTM D4181.
2. MIL-DTL-55302/75, and MIL-DTL-55302/166
through MIL-DTL-55302/170.
Hex polarization
Square polarization
Patent number 3,582,867
Patent number 3,611,272

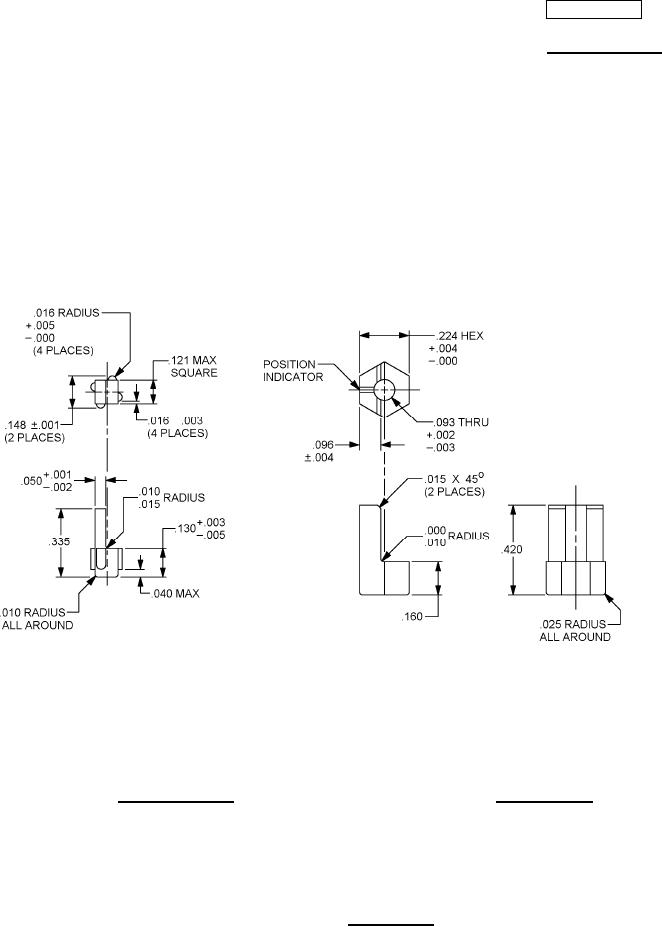

FIGURE 1. Key polarizing.
AMSC N/A
FSC 5935
